SELECT A DIAGRAM

01 - Cover


03 - Backguard

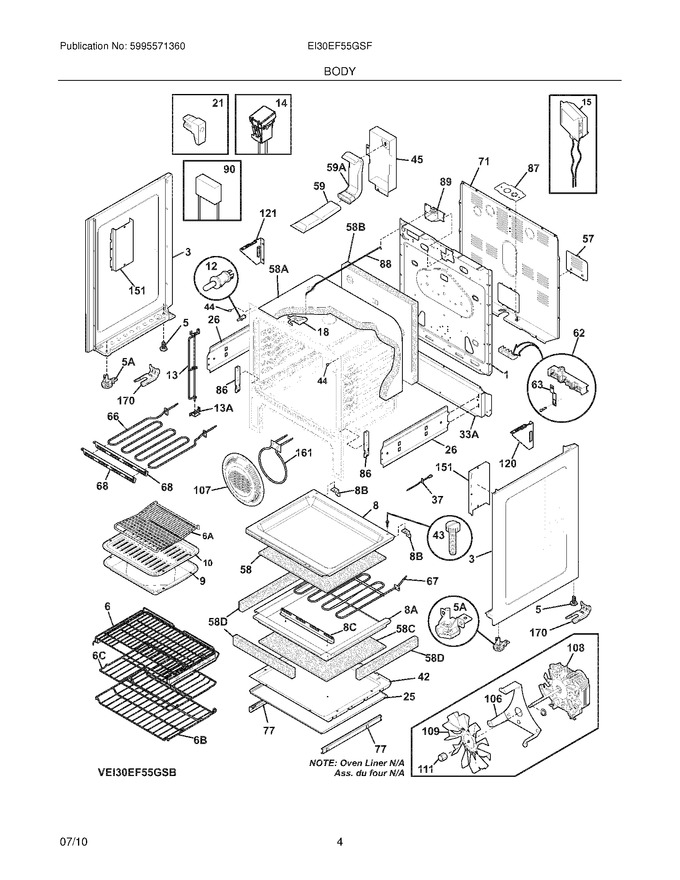

05 - Body


07 - Top/drawer


09 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316502004		Back,main		Appelez-nous	-
3	316400144		Panel,bodyside ,black ,rh   (Replaces: 316400118)			Immediately	$ 134.69
3	316400145		Panel,bodyside ,black ,lh   (Replaces: 316400119)			Immediately	$ 133.93
5	316272900		Screw,leveling ,plastic ,rear ,(2)			Immediately	$ 27.50
6	316571800		Rack Assembly,w/glides				$ 290.93
8	316505602		Panel,cobalt ,oven Bottom				$ 158.06
9	316081901		Pan,broiler ,cobalt Blue				$ 74.32
10	316082001		Insert,broiler Pan ,cobalt Blue				$ 53.09
13	316528904		Lever Assembly,rack Sensing				$ 98.70
14	316508301		Switch Assembly,rack Sensing				$ 207.03
15	316510701		Lamp,oven ,(2) ,halogen				$ 157.97
21	316408000		Clip,bodyside				$ 18.20
25	316505900		Shield,lower ,bake		Appelez-nous	-
26	316409000		Shield,warmer Side ,(2)				$ 44.47
42	316407700		Shield,wool ,lower				$ 131.19
44	316517600		Spacer,oven Door				$ 12.05
45	316509900		Shield,vent Tube		Appelez-nous	-
57	316457801		Cover,access				$ 12.89
58	316509500		Insulation,bake Element				$ 45.09
59	316208402		Vent Tube,assembly ,w/catalyst				$ 38.27
63	316542600		Plate,grounding Strap		Appelez-nous	-
68	316506401		Support,broil Element ,(2)		Appelez-nous	-
71	316422304		Shield,rear Wall				$ 115.53
77	316456700		Glide,warmer Drawer ,outer/rh & Lh ,(2)			Immediately	$ 60.96
86	316580700		Receptacle,hinge ,(2)   (Replaces: 316508600)			Immediately	$ 30.47
87	316081200		Bracket,cable Mtg		Appelez-nous	-
88	316203500		Rod,auto Latch				$ 72.30
106	316404100		Bracket,motor Mtg.				$ 63.70
107	316026702		Cover,fan				$ 67.94
108	316256100		Motor-fan			Immediately	$ 211.18
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut,fan Retainer			Immediately	$ 19.13
120	316279204		Bracket,stiffener ,rh		Appelez-nous	-
121	316279205		Bracket,stiffener ,lh		Appelez-nous	-
151	316404600		Shield,bodyside				$ 49.30
170	316112005		Anti Tip Kit,assembly   (Replaces: 316112004)			Immediately	$ 18.91
13A	316543000		Bracket,lever ,lower ,rack Sensing				$ 20.80
33A	316402100		Shield,rear Wall ,lower				$ 47.30
58A	316406604		Insulation,oven Wrapper   (Replaces: 316406601)			Immediately	$ 69.77
58B	316406502		Insulation,oven Back		Appelez-nous	-
58C	316509600		Insulation,lower Shield		Appelez-nous	-
58D	316509700		Insulation,oven Bottom				$ 60.25
59A	316510000		Vent Tube,oven ,upper				$ 41.53
5A	5304509869		Leveling Leg Assy,metal ,front ,(2) ,bracket & Leg   (Replaces: 316498900)			Immediately	$ 15.08
6A	318219500		Rack,broiler Pan		Appelez-nous	-
6B	316496205		Rack,oven				$ 134.67
6C	316496201		Rack,oven ,(1)   (Replaces: 316498003)			Immediately	$ 103.48
8A	316505701		Base,bake Element				$ 244.44
8B	316506000		Bracket,support ,oven Bottom ,(2)				$ 4.55
8C	316505801		Support,element				$ 25.48
F12	316445500		Switch,oven Light ,door Frame			Immediately	$ 54.74
F161	316211603		Element,convection Fan ,350 W				$ 255.86
F170	316541700		Template,anti-tip		Appelez-nous	-
F170	316112005		Bracket,anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
F170	316116000		Screw,concrete ,1.75`` ,anti-tip Brkt				$ 12.89
F18	316405800		Latch Assembly,oven Door			Immediately	$ 56.74
F37	316490000		Probe,oven Temp			Immediately	$ 58.30
F62	5303935271		Terminal Block Kit				$ 73.56
F66	5304511881		Element,broil   (Replaces: 316506300)			Immediately	$ 81.14
F67	316505500		Element,bake ,3000w			Immediately	$ 259.25
F89	5304528973		Motor-latch   (Replaces: 316464300)			Immediately	$ 52.34
F90	316539900		Filter,noise ,lock Motor ,suppressor				$ 68.61
FNI	316506267		Wiring Harness,main				$ 204.23
NI	316021109		Screw,8-18 X 0.5 ,black   (Replaces: 316021110)			Immediately	$ 27.50
NI	316205500		Nut,hex Flange ,3/8 10-32				$ 11.34
NI	316001017		Screw,ground Wire   (Replaces: 316001003)				$ 3.03
NI	3131737		Washer-black				$ 5.59
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	5303285179		Screw,wafer Head `8-32t X 0.500 ,black				$ 13.46
NI	316021132		Screw,8-18 X 11/16 ,black ,(3)				$ 12.89
NI	5304537066		Lubricant,high Temp ,oven Racks   (Replaces: 5304469602)			Immediately	$ 42.62
NI	316418901		Screw,trilobe ,10-32 X 5/16`` ,black				$ 14.18
NI	316021109		Screw,hex Head Cup Pt ,8-18 X 0.375 ,black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316279600		Screw,bracket ,stiffener ,(4)				$ 12.05
NI	316256200		Plug,button ,oven Button		Appelez-nous	-
NI	316021109		Screw`8-18 X 0.5 ,chrome			Immediately	$ 27.50
NI	316542200		Insulator		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
