SELECT A DIAGRAM

01 - Body


02 - Control Panel


03 - Door (lower)


04 - Door (upper)


05 - Oven

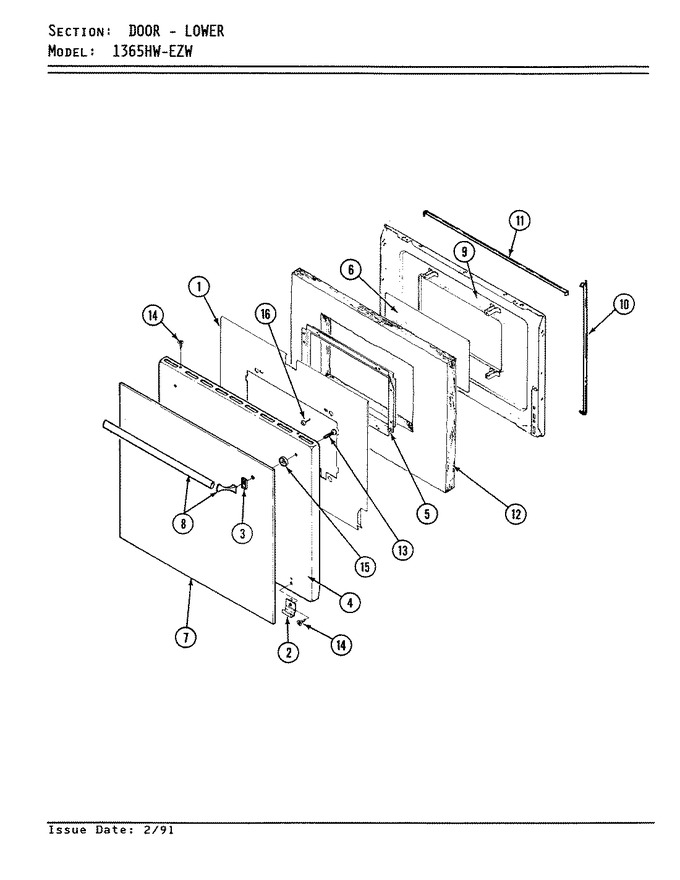

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3601F103-51		Baffle, Door	1	Appelez-nous	-
2	3819F010-71		Clip,glass Retainer (wht)	1	Appelez-nous	-
3	8010P054-60		Spacer, Door Handle	1	Appelez-nous	-
4	2401F054-71		Panel, Door	1	Appelez-nous	-
4	2401F104-71		Panel, Door (wht)	12	Appelez-nous	-
5	3603F013-80		Frame, Window----na	1	Appelez-nous	-
6	7902P035-60		Glass, Door Inner	1	Appelez-nous	-
7	WP854334		Seal, Rubber   (Replaces: 7208P011-60)	1			$ 11.95
7	7902P301-60		Glass, Outer Door----na	1	Appelez-nous	-
7	7902P333-60		Glass, Outer (wht)	12	Appelez-nous	-
7	7208P001-60		Seal, Glass	1	Appelez-nous	-
8	7701P086-60		Handle, Door (wht)	1	Appelez-nous	-
9	2402W132-19		Lining, Door	13	Appelez-nous	-
9	2402W132-15		Lining Assembly	1	Appelez-nous	-
10	7212P007-60		Seal, Door (vertical)	1			$ 47.10
11	WP7212P006-60		Seal, Door (horizontal)   (Replaces: 7212P006-60)	1			$ 105.81
12	7002P019-60		Insulation, Door Lower	1	Appelez-nous	-
13	7101P089-60		Screw, Door Handle	1	Appelez-nous	-
14	W11233072		Screw (zinc)   (Replaces: 7101P041-60)	1		Immediately	$ 12.62
15	74003986		Spacer, Glass   (Replaces: 8010P016-60)	1			$ 13.08
16	WP7101P126-60		Screw   (Replaces: 7101P061-60)	1		Immediately	$ 6.85

    View Diagram in Separate Window       Print Part List
