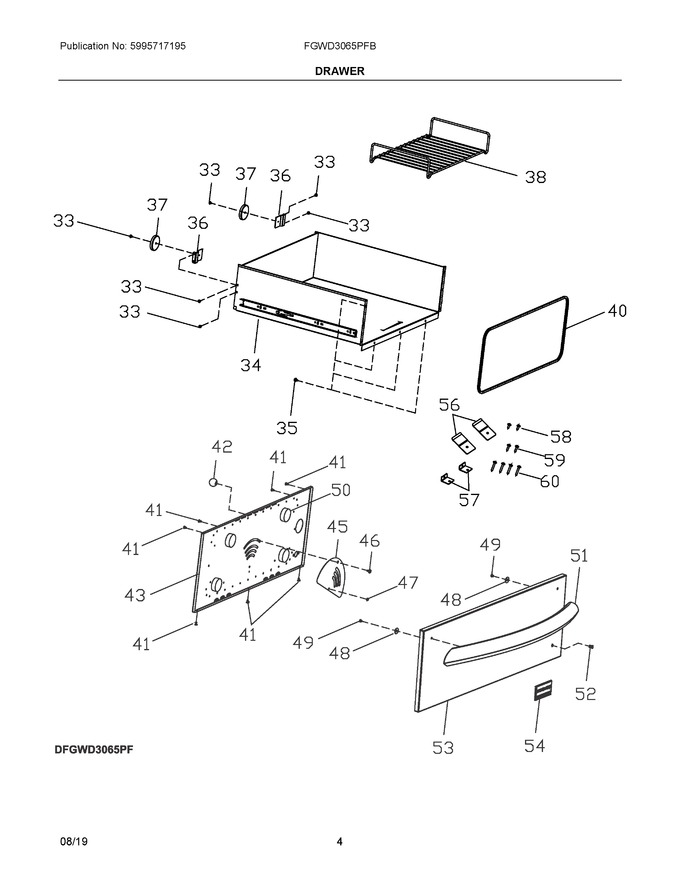

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	305338504		Screw, M4 X 5 Mm, (6)		Appelez-nous	-
34	808248901		Drawer Assembly, W/glides				$ 455.81
35	5304415832		Screw, 8-18 X 13/32", (7)		Appelez-nous	-
36	808499901		Bracket, Magnet Mtg., (2)		Appelez-nous	-
37	318373201		Magnet, Drawer, (2)				$ 5.99
38	807328301		Rack, Warmer Drawer   (Replaces: 318345601)				$ 87.21
40	318254408		Gasket, Warmer Drawer				$ 49.40
41	08016432		Screw, Truss Head, 8-18 X 3/8", (7)		Appelez-nous	-
42	318251100		Handle, Control, Humidity		Appelez-nous	-
43	807517201		Liner, Drawer Panel, Inner		Appelez-nous	-
45	807393601		Panel, Humidity Cntl		Appelez-nous	-
46	5304443138		Screw, 10-24 X 3/8		Appelez-nous	-
47	305616000		Rivet, Humidity Panel		Appelez-nous	-
48	305338306		Washer, Flat, (2)		Appelez-nous	-
49	305615800		Screw, Handle Mtg., 10-24 X 3/8", (2)		Appelez-nous	-
50	808561901		Bumper, Drawer, Inner, (4)		Appelez-nous	-
51	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554005)			Immediately	$ 168.44
52	318378201		Lens, Light		Appelez-nous	-
53	808122301		Panel, Drawer, Stainless, Outer		Appelez-nous	-
58	305376108		Screw, St4.2 X 12.5, (2)		Appelez-nous	-
59	305376109		Screw, St4.8 X 19, (2)		Appelez-nous	-
60	305376110		Screw, St4.8 X 31.75, (4)		Appelez-nous	-
NI	318163602		Cleaner, Stainless Steel				$ 26.51
