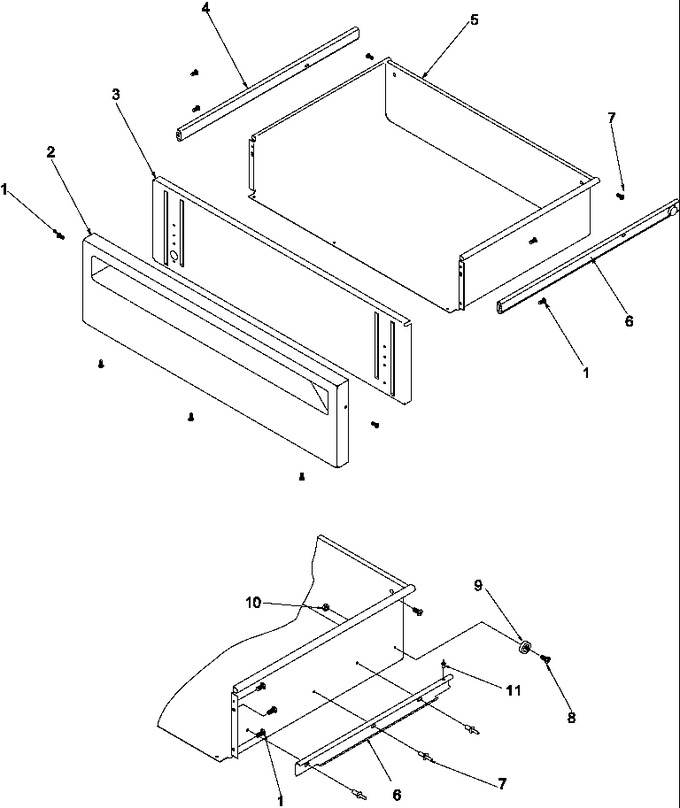

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
1	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: Y0059445)			Immediately	$ 12.65
1	31750706		Screw, No.8 X .375 Wafer Hd(blk)		Appelez-nous	-
2	309176B		Panel, Drawer (blk)		Appelez-nous	-
3	309178B		Liner, Drawer Panel (blk)		Appelez-nous	-
5	31733502W		Drawer, Storage (wht)		Appelez-nous	-
6	31733301		Track, Storage Drawer		Appelez-nous	-
7	Y0076357		Rivet, Pop		Appelez-nous	-
8	31750717		Bolt, Shoulder 10-32		Appelez-nous	-
9	31733401		Roller, Drawer				$ 5.75
10	WP3400029		Nut, Hex Keps No.10-32   (Replaces: 31750103)			Immediately	$ 6.98
11	Y0097822		Rivet, Pop		Appelez-nous	-
