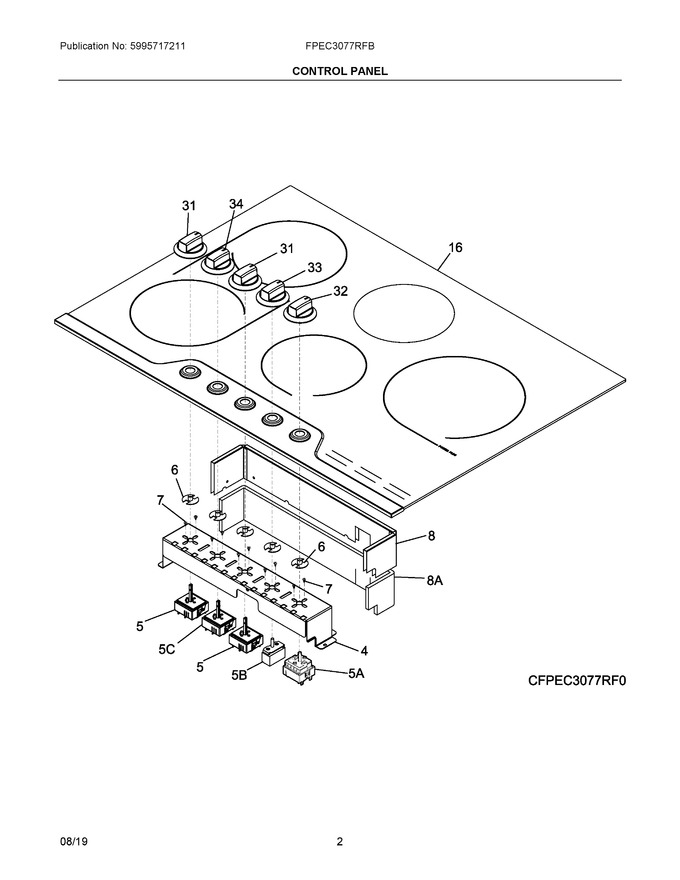

02 - Control Panel
03 - Main Top/surface Units
04 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 4 | 5304501816 | Support, Switch |
|
- | |||||
| 5 | 5304526190 | Switch, Infinite, Single Control (Replaces: 305458905) |
|
Immediately | $ 90.50 | ||||
| 6 | 318146010 | Bushing, Switch |
|
$ 17.16 | |||||
| 7 | 5304536454 | Screw, Switch Mtg., M4 X 7 (Replaces: 319224001) |
|
$ 2.98 | |||||
| 8 | 5304501818 | Shield, Heat |
|
- | |||||
| 16 | 5304501815 | Maintop Assembly, Glass, Black, W/trim |
|
$ 530.93 | |||||
| 31 | 5304501822 | Knob, Single |
|
$ 146.29 | |||||
| 32 | 5304501823 | Knob, Turbo |
|
$ 143.87 | |||||
| 33 | 5304527984 | Knob, Selector (Replaces: 5304501824) |
|
Immediately | $ 81.14 | ||||
| 34 | 5304501825 | Knob, Bridge |
|
$ 143.69 | |||||
| 5A | 318531500 | Switch, Infinite, Turbo Element |
|
Immediately | $ 110.14 | ||||
| 5B | 342149302 | Switch, 1+0 (Replaces: 342149301) |
|
$ 29.58 | |||||
| 5C | 903097-9040 | Switch, Infinite, Dual Control (Replaces: 318191001) |
|
Immediately | $ 90.83 | ||||
| 8A | 5304501821 | Insulation, Heat Shield |
|
- | |||||
| NI | 318163602 | Cleaner, Stainless Steel |
|
$ 26.51 | |||||
| NI | 318163601 | Cleaner-cooktop |
|
$ 0.42 |
