SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel

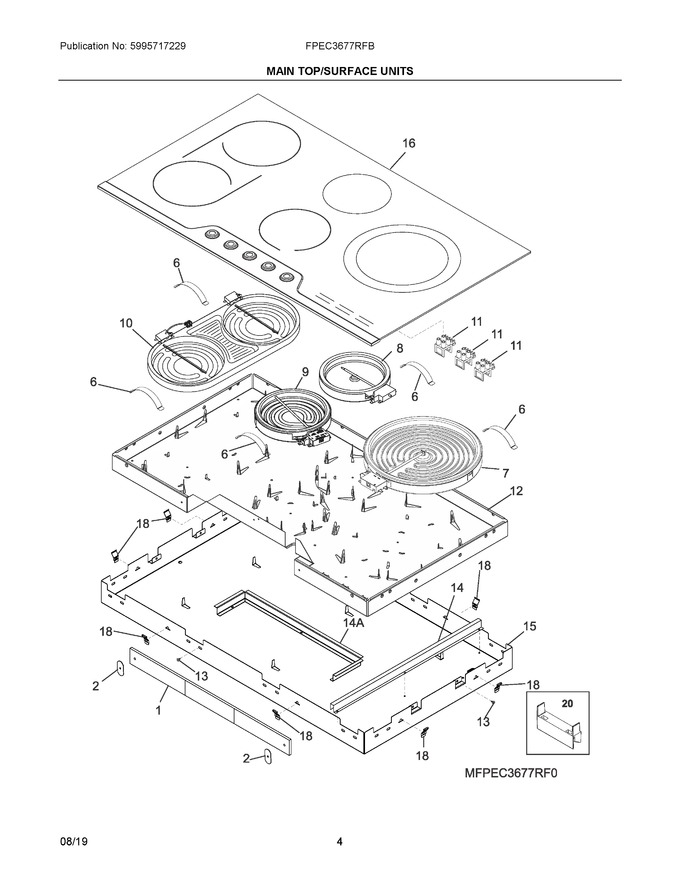

03 - Main Top/surface Units


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304501820		Insulation Assembly, W/foil				$ 87.17
2	5304501828		Plate, Insulation Mtg.		Appelez-nous	-
6	387372900		Spring, Surface Element				$ 15.17
7	316282101		Element, Surface, 9"/12", 1200w/1800w, Dual Radiant   (Replaces: 318198935)			Immediately	$ 283.03
8	140283001026		Element, Surface, 6", 1200w   (Replaces: 374063522)			Immediately	$ 73.17
9	305440414		Element, Warm Zone, 6", 100w				$ 196.52
10	318258201		Element, Bridge, 1800/2600   (Replaces: 318178200)			Immediately	$ 480.54
11	387812004		Light Assembly, Indicator, Hot Surface				$ 50.32
12	5304501843		Box, Inner		Appelez-nous	-
13	131243700		Screw, B4, 2 X 9, 5   (Replaces: 330447900)				$ 3.36
14	387683500		Support, Burner Box		Appelez-nous	-
15	387811901		Box, Outer		Appelez-nous	-
16	5304501842		Maintop Assembly, Glass, Black, W/trim				$ 511.66
18	387174602		Bracket, Spring, Cooktop Mtg.				$ 5.67
20	387627600		Spacer, Burner Box, Plastic				$ 12.71
14A	5304501817		Bracket, Support, Inner Box		Appelez-nous	-
NI	387627700		Bracket, Retainer, Cooktop				$ 24.10
NI	5304522485		Harness, Wiring, Main			Immediately	$ 155.47
NI	5304403558		Screw, 10-16 X 0.250		Appelez-nous	-
NI	5304522486		Box & Wires Assy		Appelez-nous	-
NI	202855101		Holder, Cable				$ 1.42
NI	305309606		Screw, (2)				$ 11.34
NI	5303323140		Screw, Ground   (Replaces: 305452800)		Appelez-nous	-
NI	318121902		Bracket, Retainer				$ 47.03
NI	131202300		Screw, 8 X 5/8   (Replaces: 3131048)			Immediately	$ 13.46
NIA	305351200		Rivet, 3, 2 X 6		Appelez-nous	-
NIA	5303307980		Screw, 8-32 X 0.437, (4)			Immediately	$ 14.18
