Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 3934005 Main Top, Wheat Appelez-nous -
1 3934028 Main Top, Wheat Appelez-nous -
2 3011558 Bracket, Main Top Hinge Lh Appelez-nous -
3 3011559 Bracket, Main Top Hinge Rh Appelez-nous -
4 283T013W01-18 Grate (4) Appelez-nous -
5 618T038P05 Rod-main Top Appelez-nous -
6 3131910 Knob-top Valve (4) Appelez-nous -
7 3016411 Panel-manifold Appelez-nous -
*24162 612T124P01 Wire-retainer Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

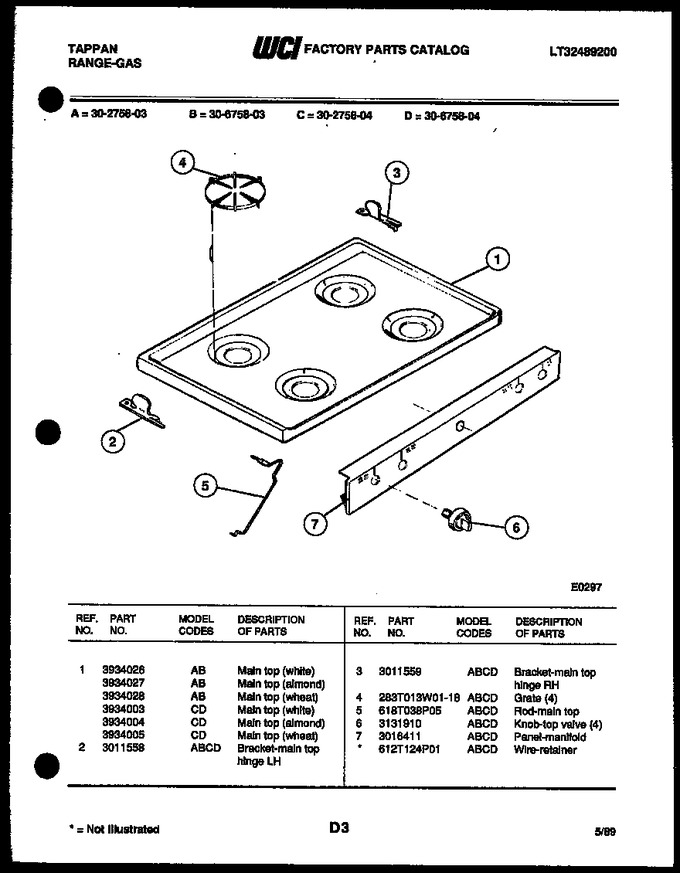

Diagram for 30-2758-66-04
