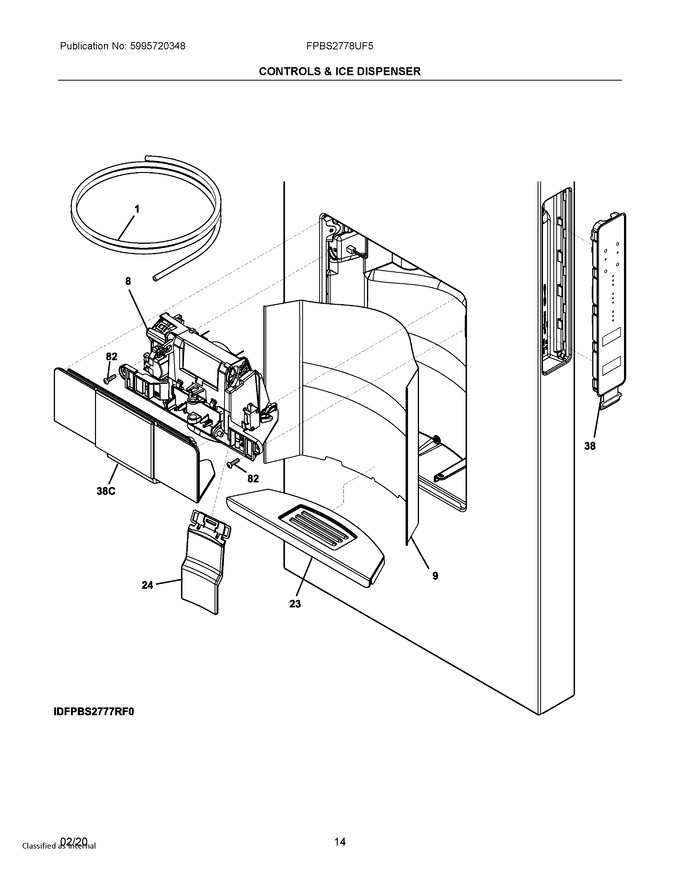

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 | ||||
| 8 | 242270219 | Module Assembly, Ice & Water, Complete (Replaces: 242270210) |
|
Immediately | $ 86.68 | ||||
| 9 | 809089801 | Liner, Sump Back, Stainless |
|
$ 194.90 | |||||
| 23 | 5304501179 | Sump Assembly, Ice & Water, Stainless |
|
$ 170.63 | |||||
| 24 | 5304501181 | Actuator, Ice Lever, Silver |
|
$ 100.86 | |||||
| 38 | 5304510329 | User Interface, Assembly, Black, W/board & Pad |
|
Immediately | $ 244.52 | ||||
| 82 | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 38C | 809091203 | Control Assembly, Dispenser Uib, Stanless/black, W/touch Pad (Replaces: 809091201) |
|
$ 387.41 | |||||
| NI | 5304501175 | Harness, Wiring, Dispenser, To Watson Cntl. |
|
$ 38.28 | |||||
| NI | 242040806 | Harness-wiring, Door |
|
$ 42.53 | |||||
| NI | 241510904 | Harness-dispenser, Grounding |
|
$ 60.96 | |||||
| NI | 5303918744 | Kit, Dc Dispenser Heater |
|
$ 203.24 | |||||
| NIA | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| NIB | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIC | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
