SELECT A DIAGRAM
01 - Cover Sheet

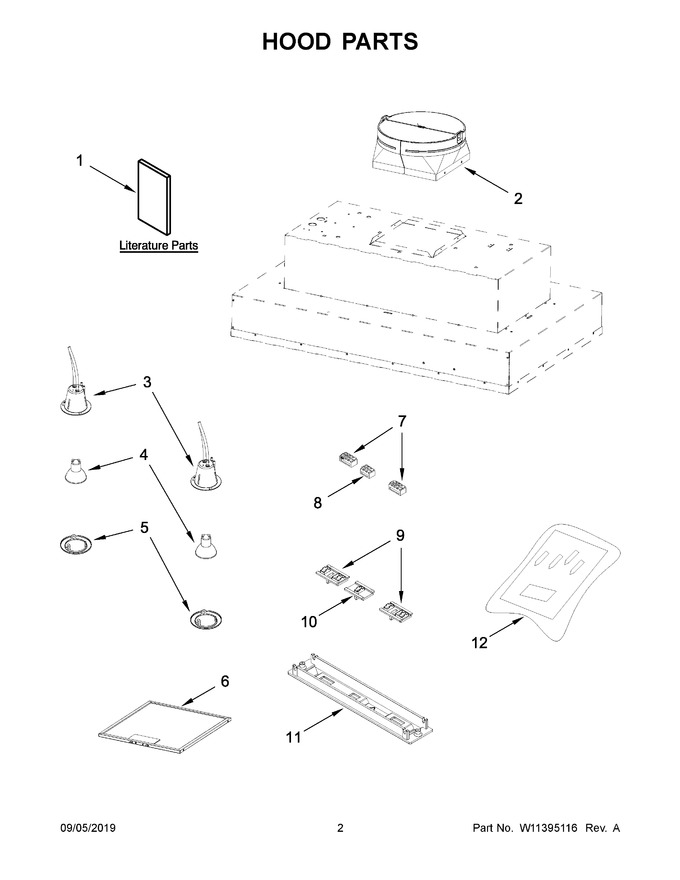

02 - Hood Parts
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11374537 | Owners Manual |
|
- | |||||
| 2 | W11156393 | Assembly, Damper |
|
$ 183.67 | |||||
| 3 | WPW10370558 | Socket, Light (Replaces: W10370558) |
|
$ 74.94 | |||||
| 4 | W11800238 | Lamp, Led (Replaces: W11388445) |
|
Immediately | $ 75.11 | ||||
| 5 | W10351924 | Bezel, Lamp |
|
$ 169.36 | |||||
| 6 | W10169961A | Filter, Grease (Replaces: W11245983) |
|
Immediately | $ 37.65 | ||||
| 7 | W10853393 | Switch, Rocker (motor) (Replaces: W10351916) |
|
Immediately | $ 184.83 | ||||
| 8 | W11193832 | Switch, Rocker (on/off) (Replaces: W10351915) |
|
$ 184.80 | |||||
| 9 | W11569415 | Slider, Switch (Replaces: W11397923) |
|
Immediately | $ 27.28 | ||||
| 10 | W11662407 | Slider, Switch (Replaces: W11397924) |
|
Immediately | $ 38.09 | ||||
| 11 | W11387938 | Panel, Switch (Replaces: W11360634) |
|
Immediately | $ 133.92 | ||||
| 12 | W11388447 | Hardware, Installation |
|
$ 106.92 |
