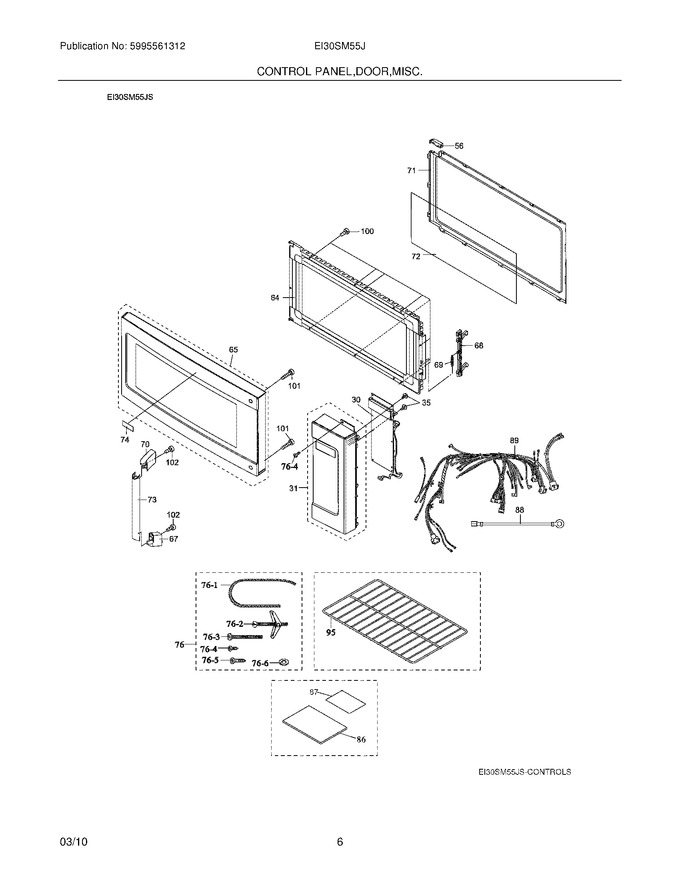

05 - Control Panel,door,miscellaneous


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
31	5304477249		Cover,control Board ,white		Appelez-nous	-
35	5304456930		Screw,3 Mm X 10 Mm		Appelez-nous	-
56	5304463156		Door Stop				$ 32.56
64	5304477326		Panel,inner Door ,white		Appelez-nous	-
65	5304477329		Frame Assembly,door ,white		Appelez-nous	-
67	5304467797		End Cap,handle ,white ,lower				$ 18.96
68	5304467798		Latch,door				$ 33.86
69	5304440316		Spring,door Latch			Immediately	$ 61.00
70	5304467801		End Cap,handle ,white ,upper				$ 11.33
71	5304467802		Frame,choke Cover ,inner Door				$ 89.85
72	5304477335		Seal,door ,film				$ 46.34
73	5304477338		Handle,door ,white		Appelez-nous	-
74	5304467809		Badge,nameplate ,white		Appelez-nous	-
76	5304464349		Hardware Kit,installation   (Replaces: 5304467765)			Immediately	$ 57.11
86	5304467832		Template,installation ,top				$ 19.52
87	5304467833		Template,installation ,wall		Appelez-nous	-
95	5304463180		Rack,microwave Oven ,wire				$ 123.33
100	5304451561		Screw,4 Mm X 8 Mm				$ 16.63
101	5304467810		Screw,4 Mm X 30 Mm				$ 64.12
102	5304468931		Screw,4 Mm X 15 Mm				$ 9.83
F30	5304477246		Control Board,printed Circuit		Appelez-nous	-
F76-	5304453895		Screw,5mm X 85mm				$ 16.68
F76-	5304502863		Screw,4 Mm X 8 Mm ,silver   (Replaces: 5304451552)				$ 10.85
F76-	5304453723		Screw,5mm X 35mm				$ 13.28
F76-	5304453724		Washer				$ 12.68
F76-	5303318762		Screw,toggle				$ 11.71
F76-	5303318761		Sleeve,power Cord ,grommet				$ 25.05
F88	5304467828		Wire,ground		Appelez-nous	-
F89	5304467829		Wiring Harness,main				$ 124.22
