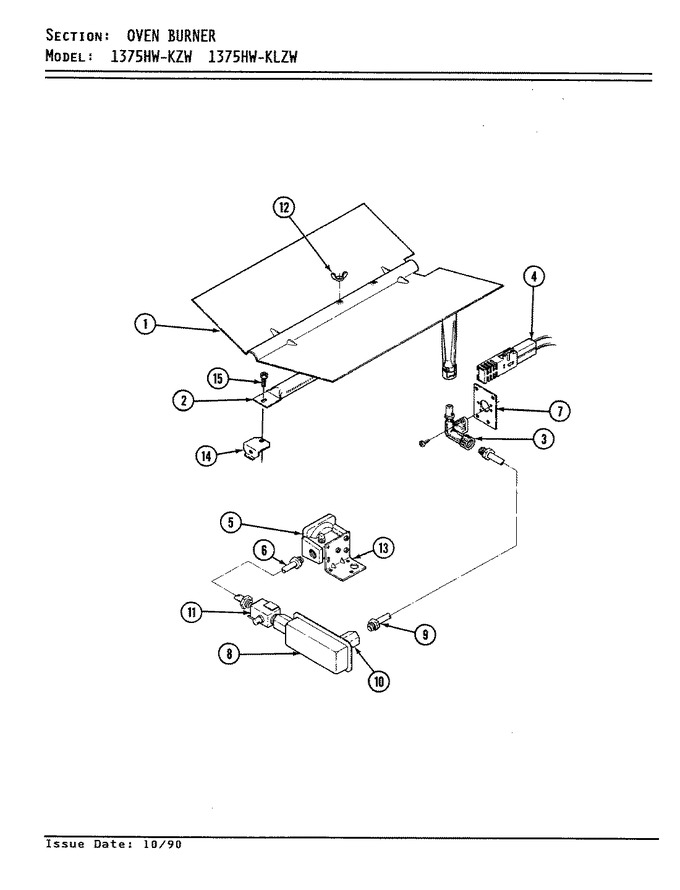

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3601F101-45 | Baffle, Oven Burner | 1 |
|
- | ||||
| 2 | 7505P065-60 | Burner, Oven | 1 |
|
- | ||||
| 3 | 7507P008-60 | Fitting, Bake Bnr. | 1 |
|
- | ||||
| 4 | 7401P018-60 | Block | 1 |
|
- | ||||
| 4 | WP4159193 | Screw (10-24x5/16-ni) (Replaces: 7101P282-60) | 1 |
|
$ 4.29 | ||||
| 4 | 12400035 | Igniter, Bake (Replaces: 7432P051-60) | 1 |
|
Immediately | $ 60.44 | |||
| 5 | 7510P037-60 | Regulator, Pressure (nat) | 14 |
|
- | ||||
| 5 | 7510P014-60 | Regulator, Pressure | 1 |
|
- | ||||
| 6 | 1555258K | 3/8`` Nut & Ferrule | 1 |
|
- | ||||
| 6 | 3414F097-44 | Tubing, Regulator (3/8``) | 14 |
|
- | ||||
| 6 | 3414F067-44 | Tubing | 1 |
|
- | ||||
| 7 | 3807F122-34 | Support | 1 |
|
- | ||||
| 8 | 7501P018-60 | Valve, Bake | 1 |
|
- | ||||
| 9 | 3414F039-44 | Tubing, 3/8 X 31 | 1 |
|
- | ||||
| 10 | 1555251 | Nut, Loxit (3/8``) | 1 |
|
- | ||||
| 11 | 7502P002-60 | Valve, Shut Off | 1 |
|
- | ||||
| 12 | 7103P030-60 | Nut, Wing | 1 |
|
$ 6.37 | ||||
| 13 | 3801F112-34 | Bracket, Regulator | 1 |
|
- | ||||
| 14 | 3806F001-45 | Hanger, Burner | 1 |
|
- | ||||
| 15 | WP7101P126-60 | Screw (Replaces: 7101P058-60) | 1 |
|
Immediately | $ 6.85 |
