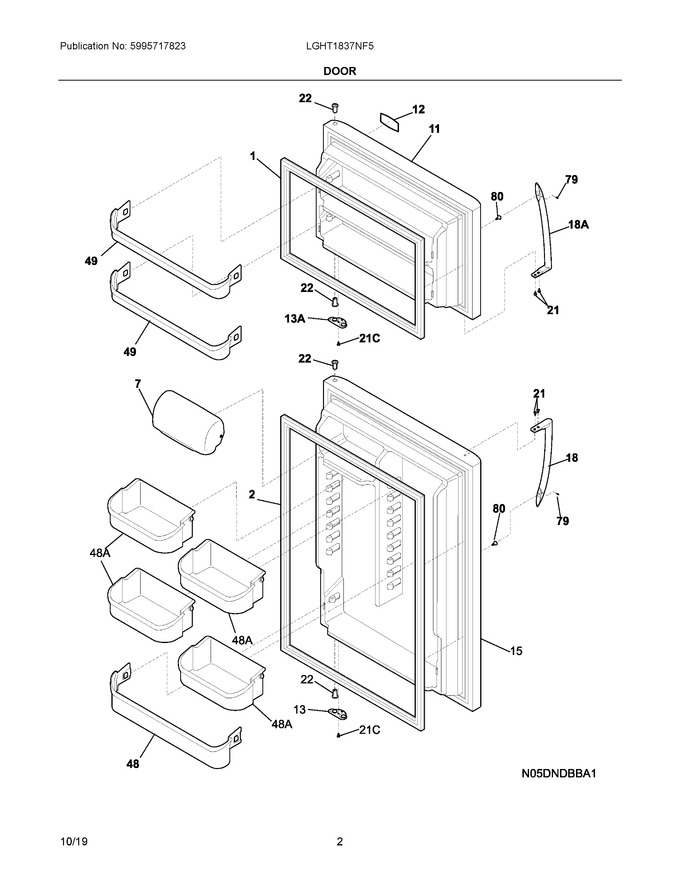

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193209		Gasket-frzr Door, Black, Magnetic			Immediately	$ 197.62
2	242193212		Gasket-refr Door, Black, Magnetic			Immediately	$ 191.86
7	240338313		Door, Dairy, Clear			Immediately	$ 80.80
11	241623327		Door-frzr, Stainless, Complete Assy				$ 314.88
12	242015201		Label-nameplate			Immediately	$ 6.90
13	240312422		Door Stop, Black, Refr   (Replaces: 240312405)				$ 15.17
15	241623439		Door-refr, Stainless, Complete Assy				$ 312.00
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 336.65
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 19.23
22	215774918		Plug, Button, Black, Upr Hinge Holes				$ 9.86
41	241941202		Screw, Hex Washer Head, 8-18 X 5/16   (Replaces: 240433204)				$ 15.17
48	240338101		Bin-door			Immediately	$ 52.37
49	240495804		Bin-door, Pseudo, Frzr			Immediately	$ 43.29
79	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 18.60
13A	240312415		Door Stop, Black, Frzr				$ 21.27
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 336.65
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
22A	5304507147		Bearing-hinge, Black   (Replaces: 240527102)			Immediately	$ 7.59
48A	241808201		Bin-door			Immediately	$ 79.97
NIA	218515401		Clip, Grille/tube				$ 17.72
NIA	241601001		Wrench, Allen		Appelez-nous	-
NIB	241701901		Screw Driver		Appelez-nous	-
