01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

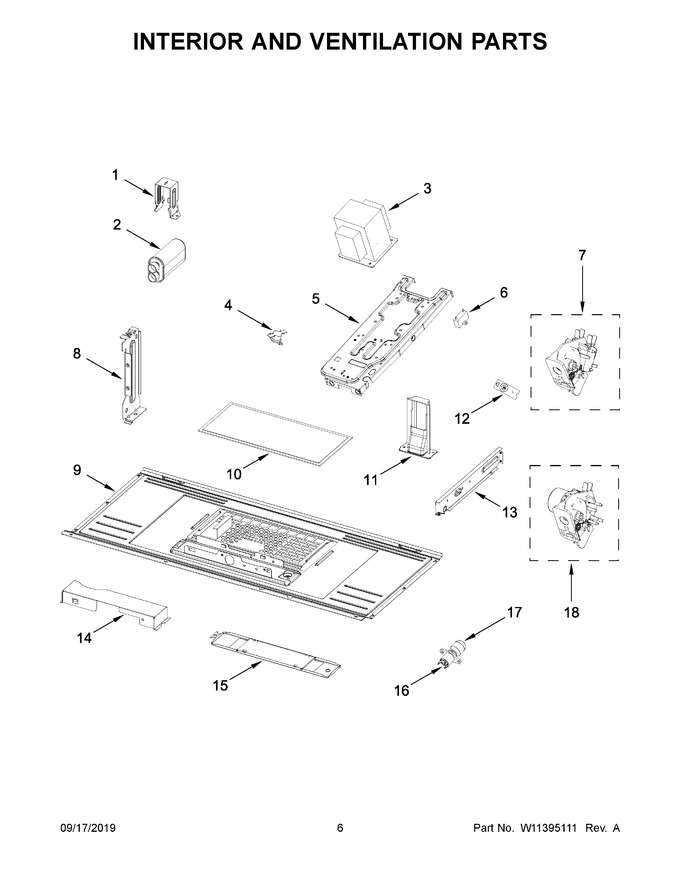

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11265233 | Bracket, Capacitor |
|
- | |||||
| 2 | W10850446 | Capacitor, High Voltage (Replaces: W10343300) |
|
$ 167.89 | |||||
| 3 | W11685625 | Transformer, High Voltage (Replaces: W11353994) |
|
$ 140.91 | |||||
| 4 | W10668273 | Thermostat, Cavity |
|
Immediately | $ 23.30 | ||||
| 5 | W11268348 | Plate, Chassis |
|
- | |||||
| 6 | W11405832 | Capacitor, Hood Motor (Replaces: W10605896) |
|
$ 24.52 | |||||
| 7 | W11182140 | Assembly, Upper Interlock (includes Switches) (Replaces: W11169310) |
|
Immediately | $ 38.60 | ||||
| 8 | W10313275 | Bracket, Top Cavity |
|
$ 30.53 | |||||
| 9 | W11295401 | Panel, Bottom |
|
$ 115.46 | |||||
| 10 | W11391715 | Filter, Grease (Replaces: W11268912) |
|
Immediately | $ 13.22 | ||||
| 11 | W10770968 | Plate, Waterproof |
|
$ 55.59 | |||||
| 12 | W10163422 | Thermistor |
|
$ 154.03 | |||||
| 13 | W11295335 | Support, Ntc |
|
- | |||||
| 14 | W11361503 | Reflector, Lamp |
|
- | |||||
| 15 | W11295403 | Cover, Lamp |
|
- | |||||
| 16 | W10210871 | Holder, Lamp |
|
Immediately | $ 5.75 | ||||
| 17 | 8206232A | Lamp, 40 Watt (Replaces: 8206232) |
|
Immediately | $ 6.61 | ||||
| 18 | W11182141 | Assembly, Lower Interlock (includes Switches) (Replaces: W11169312) |
|
Immediately | $ 28.13 |
