SELECT A DIAGRAM

01 - Cover Sheet


02 - Top And Cabinet Parts


03 - Console And Water Inlet Parts


04 - Basket And Tub Parts


05 - Gearcase, Motor And Pump Parts


06 - Optional Parts (not Included)

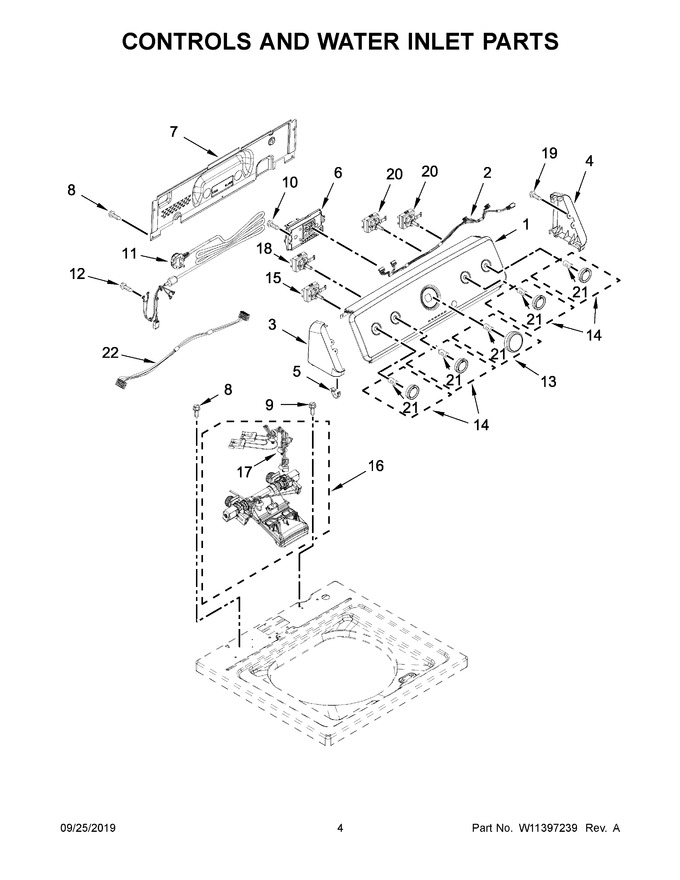

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11099689		Panel, Console   (Replaces: W10774533)		Appelez-nous	-
2	W10694685		Harness, Upper				$ 190.08
3	W10193826		End Cap (left) (white)		Appelez-nous	-
4	W10193823		End Cap (right) (white)		Appelez-nous	-
5	WP8312709		Clip, Console   (Replaces: 8312709)			Immediately	$ 17.40
6	W11401123		Control Unit Assembly, Machine And Motor   (Replaces: W11372895)		Appelez-nous	-
7	WPW10461159		Panel, Console Rear Cover   (Replaces: W10461159)			Immediately	$ 360.43
8	W11685943		Screw   (Replaces: W10660565)				$ 14.97
9	WPW10213953		Screw   (Replaces: W10213953)			Immediately	$ 7.55
10	WP90767		Screw   (Replaces: 90767)			Immediately	$ 8.25
11	W11369863		Cord, Power		Appelez-nous	-
12	W10846509		Screw   (Replaces: 3400076)			Immediately	$ 8.20
13	W11837899		Assembly, Timer Knob (grey)   (Replaces: W10558463)			Immediately	$ 18.83
14	W11837893		Assembly, Control Knob (grey)   (Replaces: W10562155)				$ 18.83
15	WPW10285512		Switch, Rotary Encoder (4 Position)   (Replaces: W10285512)			Immediately	$ 190.47
16	W11038628		Inlet Assembly, Water   (Replaces: W11026622)				$ 244.90
17	W10917060		Harness, Valve		Appelez-nous	-
18	WPW10285518		Switch, Rotary Encoder (5 Position)   (Replaces: W10285518)			Immediately	$ 158.12
19	W11693756		Screw   (Replaces: 359625)			Immediately	$ 14.76
20	WPW10285511		Switch, Rotary Encoder (2 Position)   (Replaces: W10285511)			Immediately	$ 182.10
21	WP688805		Clip, Spring   (Replaces: 688805)			Immediately	$ 8.20
22	W10694669		Harness, Jumper				$ 85.10

    View Diagram in Separate Window       Print Part List
