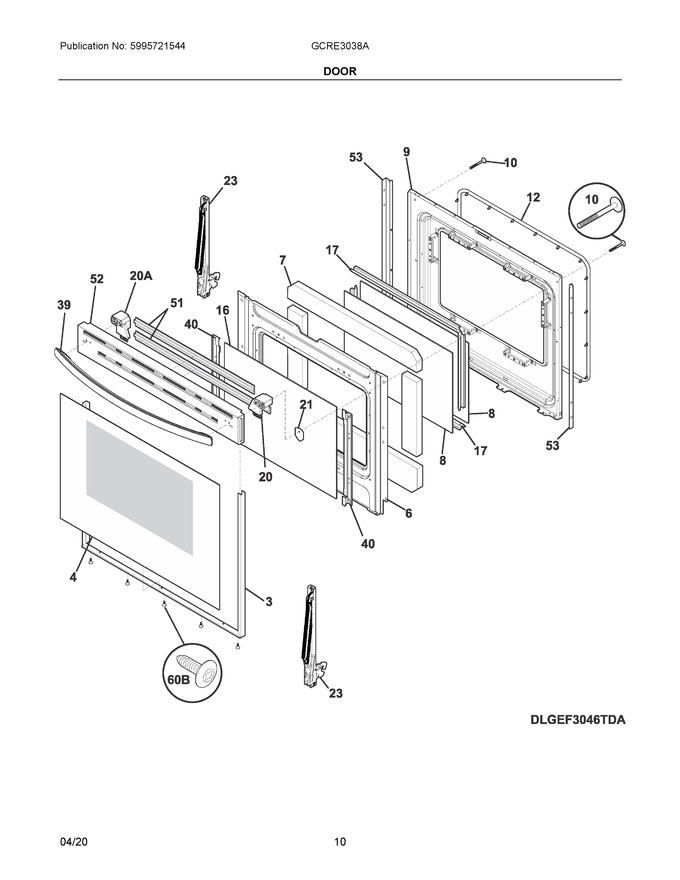

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	5303935377		Trim Kit-door, 3 Sided, Black, W/tape			Immediately	$ 58.12
4	316355602		Glass, Door, Black, W/foil   (Replaces: 316355601)				$ 215.62
6	316406328		Shield-wool   (Replaces: 316406312)				$ 87.21
7	316405600		Insulation, Oven Door				$ 76.55
8	5304503232		Glass, Oven Door, Heat Barrier, Inner, Hrc2   (Replaces: 316117502)				$ 116.95
9	316423715		Liner, Oven Door		Appelez-nous	-
10	5304507924		Screw, Handle Mtg., #10-24 X 2, (2)   (Replaces: 316439505)			Immediately	$ 16.48
12	316405000		Seal, Oven Door			Immediately	$ 179.17
16	316552801		Glass, Door, Airwash				$ 37.93
17	5304504811		Spacer, Glass			Immediately	$ 25.02
20	316353004		Spacer, Door, Rh				$ 27.30
21	316533801		Plate, Distribution, Load			Immediately	$ 5.67
23	5304522696		Hinge, Door, Dual Spring			Immediately	$ 76.59
39	316554010		Handle, Door/drawer, Stainless   (Replaces: 316554008)			Immediately	$ 168.44
40	316552401		Bracket, Airwash Glass, (2)				$ 28.83
51	316355300		Insulation, Door, Top Cap				$ 7.59
52	5304533994		Cap, Door Trim, Stainless   (Replaces: 5304518010)				$ 37.93
20A	316353005		Spacer, Door, Lh				$ 27.30
60B	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5303285179		Screw, Wafer Head, 8-32t X 0.500, Black, 44*				$ 13.46
NI	5303288572		Screw-handle Mtg		Appelez-nous	-
NI	316483102		Label, Anti-tip				$ 3.56
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
