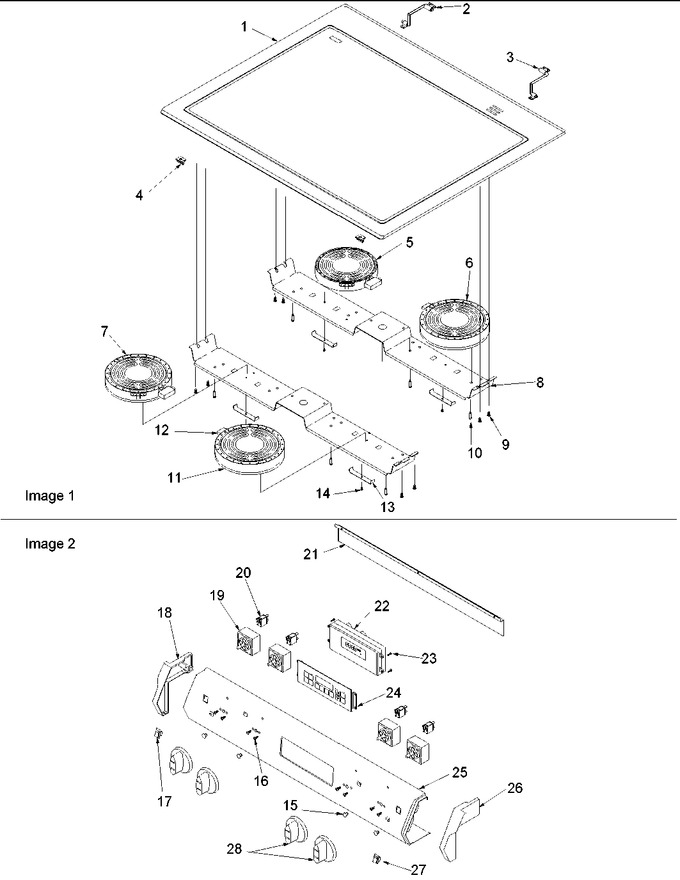

01 - Cabinet


02 - Cavity


03 - Main Top And Backguard


04 - Oven Door And Storage Drawer


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31925803C		Assy,maintop/glass(bisque)		Appelez-nous	-
2	31769702		Hinge, Main Top (lt)		Appelez-nous	-
3	31769701		Hinge, Main Top (rt)		Appelez-nous	-
4	Y0316394		Clip, Spring		Appelez-nous	-
5	W10823710		Element, Ribbon 8`` 240v/2000w   (Replaces: 31939101)			Immediately	$ 330.41
6	W10823699		Element, Ribbon 7`` 240v/1500w   (Replaces: 31939001)			Immediately	$ 145.67
7	31938901		Element, Ribbon 6`` 240v/1200w		Appelez-nous	-
8	Y0316165		Bracket, Element		Appelez-nous	-
9	31750420		Screw, No.8-32 X3/8 P Trs Hd Lp		Appelez-nous	-
10	31750715		Screw, Shoulder Ab 6-20 X .825		Appelez-nous	-
11	W10823726		Element, Dual Radiant 6/9``   (Replaces: 31852001)				$ 308.80
12	0316689		Limiter-dual		Appelez-nous	-
13	Y0306683		Spring, Element		Appelez-nous	-
14	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
15	Y0316265		Lens, Indicator		Appelez-nous	-
16	31750714		Screw, No.8-32 X 1/4		Appelez-nous	-
17	301491C		Switch,rocker(bisque)		Appelez-nous	-
18	31742708C		End Cap, Cont-pnl (lt-bsq)		Appelez-nous	-
19	WP74011243		Switch, Infinite   (Replaces: 31891202)				$ 115.88
20	31722801		Light, Indicator (125v)		Appelez-nous	-
21	0316650		Heat Shield, Control Panel		Appelez-nous	-
22	Y0315570		Erc3 (electric)		Appelez-nous	-
23	W11245710		Screw, No.8-18x.406-.344 Waferhd   (Replaces: 31750701)			Immediately	$ 12.65
24	315851C		Overlay,mylar-erc 3(bisque)		Appelez-nous	-
25	316360C		Bkgd Panel,enameled(bisque)		Appelez-nous	-
26	31742707C		End Cap, Cont-pnl (rt-bsq)		Appelez-nous	-
27	74008765		Switch,rocker(bisque)   (Replaces: 316160C)				$ 79.50
28	31905426C		Knob, Infinite (bsq)		Appelez-nous	-
	NOTE:		Note: Ribbon Element Limiters Are Not Replaceable.		Appelez-nous	-
NI	31750121		Nut, Speed No.6-32		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
