01 - Cover Sheet
02 - Control Panel Parts
03 - Door Parts

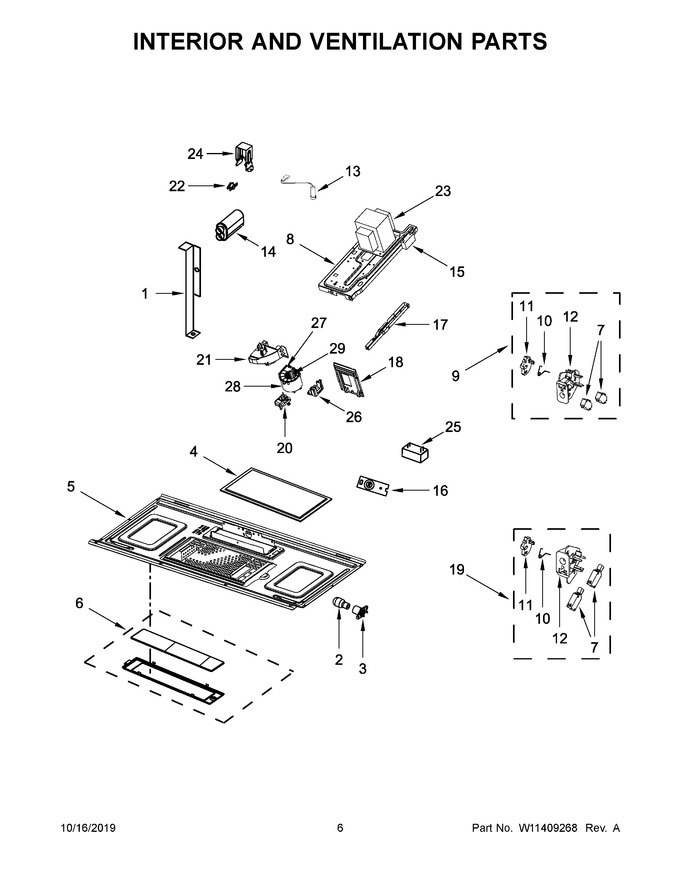

04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10540715 | Bracket, Top Cavity |
|
$ 24.79 | |||||
| 2 | 8206232A | Lamp, 40 Watt (Replaces: 8206232) |
|
Immediately | $ 6.61 | ||||
| 3 | W10210871 | Holder, Lamp |
|
Immediately | $ 5.75 | ||||
| 4 | W10208631A | Filter, Grease (Replaces: W10208631) |
|
Immediately | $ 29.33 | ||||
| 5 | W10571127 | Plate, Bottom |
|
$ 114.40 | |||||
| 6 | W10240330 | Assembly, Lamp Glass And Holder |
|
$ 6.47 | |||||
| 7 | N/P | Switches, Interlock (not Serviced, Order Interlock Assemblies) |
|
- | |||||
| 8 | W11350925 | Chassis, Component |
|
$ 111.13 | |||||
| 9 | W11252186 | Assembly, Upper Interlock (includes Switches) (Replaces: W11219774) |
|
Immediately | $ 21.11 | ||||
| 10 | W10156812 | Spring, Interlock |
|
Immediately | $ 10.93 | ||||
| 11 | W10562613 | Plate, Cam (Replaces: W10156811) |
|
Immediately | $ 16.05 | ||||
| 12 | WP8206419 | Support, Interlock (top) (Replaces: 8206419) |
|
Immediately | $ 20.13 | ||||
| 13 | W11256462 | Diode, High Voltage (Replaces: W11222648) |
|
Immediately | $ 29.88 | ||||
| 14 | W11846984 | Capacitor, High Voltage (Replaces: W10345331) |
|
- | |||||
| 15 | W11405831 | Capacitor, Hood Motor (Replaces: W10605897) |
|
$ 38.03 | |||||
| 16 | W10536989 | Thermistor, Pcba |
|
Immediately | $ 33.16 | ||||
| 17 | W10540718 | Bracket, Cavity |
|
$ 27.95 | |||||
| 18 | W11316476 | Deflector, Air |
|
$ 66.33 | |||||
| 19 | W11252187 | Assembly, Lower Interlock (includes Switches) (Replaces: W11219776) |
|
Immediately | $ 32.74 | ||||
| 20 | W11230994 | Motor, Cooling Fan (Replaces: W11169357) |
|
Immediately | $ 172.40 | ||||
| 21 | W10631700 | Air Guide, Magnetron |
|
$ 40.34 | |||||
| 22 | W10864742 | Thermostat, Cavity 125/-35 Celcius (Replaces: W10476901) |
|
$ 76.01 | |||||
| 23 | W11371266 | Transformer, High Voltage |
|
$ 318.74 | |||||
| 24 | W10633730 | Bracket, Capacitor |
|
- | |||||
| 25 | W11259892 | Resistor, Cement |
|
Immediately | $ 35.19 | ||||
| 26 | W10533480 | Holder, Ntc |
|
$ 21.23 | |||||
| 27 | W10533502 | Cover, Cooling Fan |
|
$ 22.71 | |||||
| 28 | W10533501 | Housing, Cooling Fan |
|
Immediately | $ 27.22 | ||||
| 29 | W10533503 | Wheel, Cooling Fan |
|
$ 29.26 | |||||
| 12A | WPW10156813 | Support, Interlock (bottom) (Replaces: W10156813) |
|
Immediately | $ 7.26 |
