Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 5304523182 Board Assembly, User Interface, Washer, W/housing In-Stock Immediately $ 210.93

2 5304520297 Wiring Harness, User Interface Special Order $ 33.21

3 5304523161 Wiring Harness, Main, Dryer Appelez-nous -
4 5304515821 Support, Buttons, Washer Special Order $ 23.86

5 5304515822 Support, Buttons, Dryer Special Order $ 21.69

8 5304523183 Board Assembly, User Interface, Dryer, W/housing In-Stock Immediately $ 199.91

10 5304524439 Button, Water Level, White   (Replaces: 5304515789) Special Order $ 35.42

11 5304515785 Button, Wash Temp, White Special Order $ 19.13

12 5304515793 Button, Dry Temp, White Special Order $ 19.13

13 5304515795 Button, Start/pause, White Special Order $ 16.63

14 5304515797 Button, Cancel, White Appelez-nous -
18 5304515801 Console, Decorated, White Special Order $ 176.10

19 5304505441 Screw, Pph B, 6-20x.375 Special Order $ 6.51

21 5304515769 Knob Assembly, Cycle Selector Special Order $ 43.38

22 131168200 Screw, Pan Head, 8-18b X 0.31 In-Stock Immediately $ 14.18


    View Diagram in Separate Window     Print Icon   Print Part List

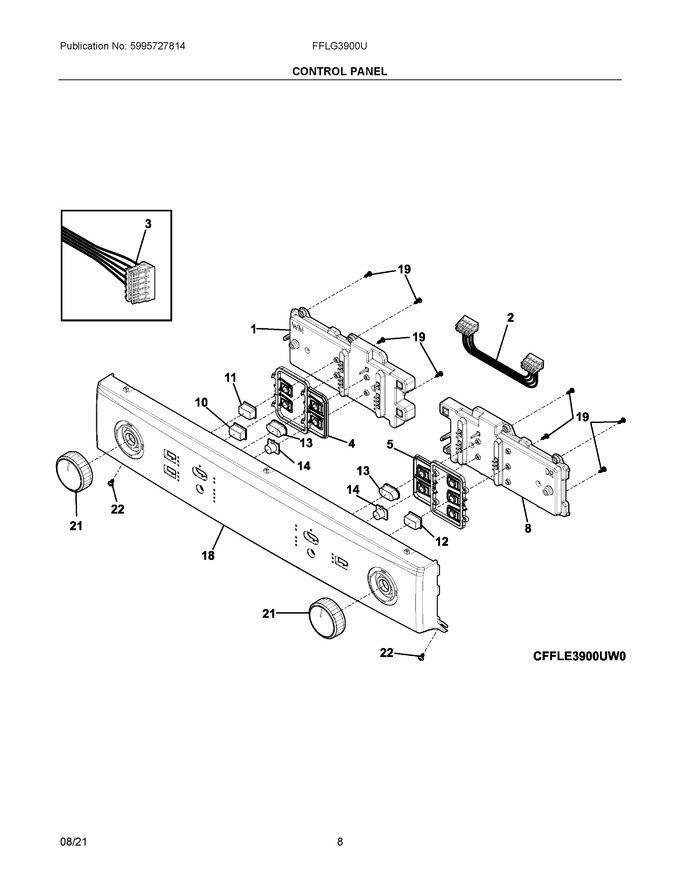

Diagram for FFLG3900UW5
