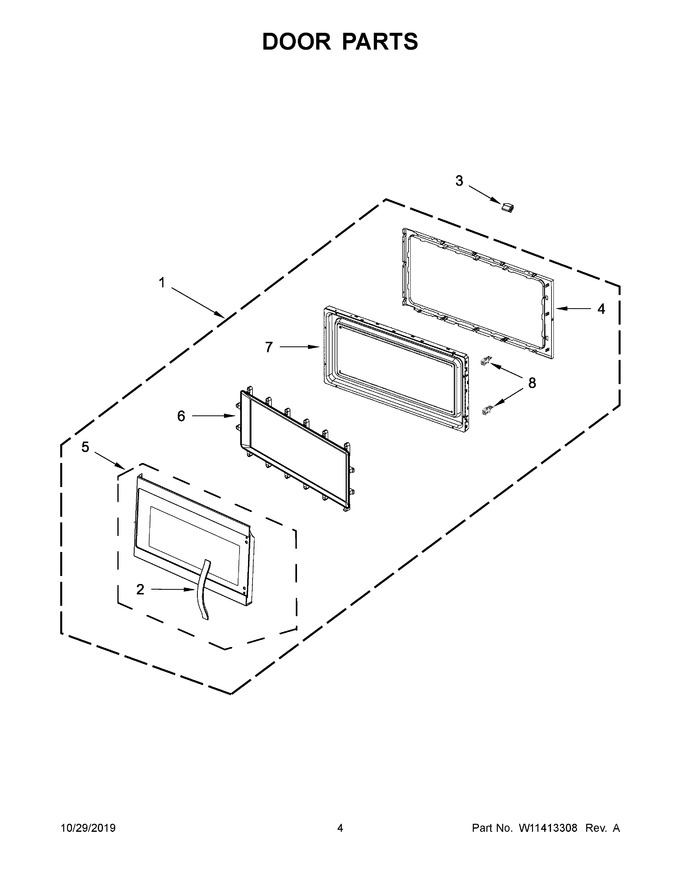

03 - Door Parts
04 - Interior And Ventilation Parts
05 - Air Flow Parts
06 - Turntable Parts
07 - Cabinet And Installation Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11194842 | Door, Complete (stainless) |
|
- | |||||
| 2 | W11322771 | Handle (stainless) |
|
$ 143.28 | |||||
| 3 | W10643974 | Stopper, Door |
|
$ 19.41 | |||||
| 4 | W10647772 | Frame, Inner |
|
$ 85.98 | |||||
| 5 | W11194850 | Assembly, Door Frame (stainless) |
|
- | |||||
| 6 | W10514243 | Plate, Steam Protection |
|
$ 67.77 | |||||
| 7 | W10893422 | Foil, Door |
|
$ 228.24 | |||||
| 8 | W10740455 | Hook, Door |
|
Immediately | $ 48.17 |
