SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Burner

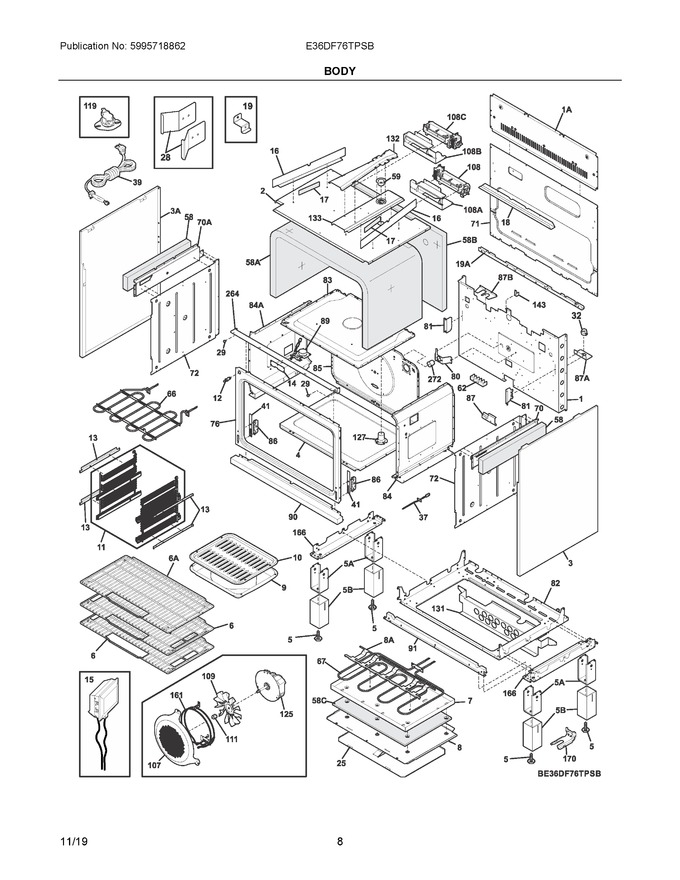

04 - Body


05 - Main Top


06 - Door


07 - Wiring Diagram


08 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304522574		Panel, Main Back		Appelez-nous	-
2	5304522573		Shield, Insulation, Upper		Appelez-nous	-
3	318352766		Panel, Side, Stainless, Lh		Appelez-nous	-
4	318364102		Liner, Oven Bottom		Appelez-nous	-
5	318175506		Screw, Leveling				$ 38.28
6	808713921		Rack Assembly, Ladder, Nickel, Glide, W/handle				$ 284.92
7	318297350		Box, Bake Element		Appelez-nous	-
8	318359551		Panel, Service		Appelez-nous	-
9	316081901		Pan, Broiler, Cobalt Blue				$ 74.32
10	316082001		Insert, Broiler Pan, Cobalt Blue				$ 53.09
11	808713923		Ladder Assembly, Kit, Nickel, W/2 Ladders				$ 551.62
12	808136601		Switch, Light, Door   (Replaces: 318394802)			Immediately	$ 44.04
13	318603908		Bracket, Ladder Mtg., (4)				$ 159.26
14	5304509798		Cover, Vent Trim, Black		Appelez-nous	-
15	139001800		Lamp Assembly, Halogen, 26" Harness, W/g9 40w Bulb				$ 124.22
16	5304509781		Deflector, Air Guide, (2)		Appelez-nous	-
17	5304509792		Insulation, Strip, 1"x7", (2)		Appelez-nous	-
18	5304509407		Bracket, Flow Guide, (2)				$ 65.21
19	318533750		Bracket, Main Back, (4)		Appelez-nous	-
25	318291900		Bracket, Shield, Lower				$ 94.27
28	5304509796		Bracket, Lower Shield, (2)		Appelez-nous	-
29	316517600		Bumper, Front, Main				$ 12.05
32	5304508576		Bushing, Power Cord, Snap Tie		Appelez-nous	-
37	5304504897		Sensor, Oven Temp Probe			Immediately	$ 48.13
39	5304507342		Cord, Range Power, 4 Wire				$ 100.89
41	5304517729		Spacer, Front Frame		Appelez-nous	-
58	5304508550		Insulation, Oven Wrapper, Extensions		Appelez-nous	-
59	318072577		Duct, Oven Vent				$ 16.30
62	5303935061		Terminal Block Kit		Appelez-nous	-
66	318255858		Element, Broil, 4000w				$ 160.02
67	318254905		Element, Bake, 3000w				$ 238.14
70	5304509801		Shield Bracket, Upper Insul, Rh		Appelez-nous	-
71	318260063		Panel, Rear Box, Lower		Appelez-nous	-
72	5304509411		Shield, Insulation, Side, (2)				$ 67.33
76	318364902		Front, Oven		Appelez-nous	-
80	318364800		Plate, Oven Mtg		Appelez-nous	-
81	318373700		Bracket, Oven, (2)		Appelez-nous	-
82	318258777		Shield, Insulation, Lower		Appelez-nous	-
83	318364202		Liner, Oven Top		Appelez-nous	-
84	318364382		Liner, Oven Side, Cobalt, Rh		Appelez-nous	-
85	318364408		Liner, Oven Back		Appelez-nous	-
86	318241406		Receptacle, Hinge, (2)				$ 75.83
87	5304508575		Bracket, Terminal Block		Appelez-nous	-
89	139021302		Motor, Latch Assy., 2 Pole				$ 147.56
90	318355052		Trim, Bottom, Stainless				$ 353.22
91	318376300		Bracket, Reinforcement		Appelez-nous	-
107	318906601		Cover, Fan				$ 202.63
108	5304517672		Motor, Blower		Appelez-nous	-
109	318398302		Fan Blade			Immediately	$ 29.11
111	316136600		Nut, Fan Retainer			Immediately	$ 19.13
119	807144901		Thermostat, Safety, 110c Deg				$ 58.39
125	5304517736		Motor Assembly, Convection Fan		Appelez-nous	-
127	318357002		Adapter, Vent Tube		Appelez-nous	-
131	5304509788		Shield, Power Cord		Appelez-nous	-
132	318347800		Chimney		Appelez-nous	-
133	5304509782		Bracket, Venturi		Appelez-nous	-
143	318172904		Bracket, Wire Support		Appelez-nous	-
161	318255511		Element, Convection, 2500 W			Immediately	$ 110.20
166	318352550		Bracket, Leveling Leg, (2), Reinforcement		Appelez-nous	-
170	316112009		Anti Tip Kit, Assy, 36", W/template		Appelez-nous	-
264	5304509784		Trim, Vent, Black		Appelez-nous	-
272	318249408		Tube, Protector		Appelez-nous	-
108A	5304509829		Bracket, Fan Support, Rh		Appelez-nous	-
108B	5304509830		Bracket, Fan Support, Lh		Appelez-nous	-
108C	5304522572		Blower Motor, Assembly, Lh		Appelez-nous	-
19A	318533705		Bracket, Main Back		Appelez-nous	-
1A	318260056		Panel, Rear Box, Upper		Appelez-nous	-
3A	318352767		Panel, Side, Stainless, Rh		Appelez-nous	-
58A	5304509791		Insulation, Oven Wrapper		Appelez-nous	-
58B	808122502		Insulation, Oven Back		Appelez-nous	-
58C	318294913		Insullation, Bake Element		Appelez-nous	-
5A	318368850		Bracket, Leveling Leg, (4)		Appelez-nous	-
5B	318352451		Cover, Leveling Leg, (4)				$ 236.36
6A	808713922		Rack Assembly, Ladder, Nickel, Fixed, W/handle				$ 284.92
70A	5304509800		Shield Bracket, Upper Insul, Lh		Appelez-nous	-
84A	318364314		Liner, Oven Side, Cobalt, Lh		Appelez-nous	-
87A	318111820		Plate, Cord Set Mtg		Appelez-nous	-
87B	318111817		Plate, Cord Set Mtg		Appelez-nous	-
8A	318313605		Bracket, Bake Element		Appelez-nous	-
NI	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316021109		Screw, 8-18 X 0.5, Black   (Replaces: 316021110)			Immediately	$ 27.50
NI	807597603		Screw, Self Tapping, 8-18 X 11/32, (4)				$ 9.22
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	5304522576		Harness, Wiring, Main				$ 267.91
NI	5303300265		Screw, 8-18 X 1/2, (4)				$ 15.17
NI	5303289910		Screw, Truss Sqdr, 8a X 1", 62*				$ 5.67
NIA	5304481623		Screw, #10-32x1/2				$ 9.61
NIA	318946400		Bulb, Halogen, G9, 40w, 120v			Immediately	$ 49.32
NIA	318391100		Screw, Glide Mtg, (2)				$ 141.75
NIA	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIA	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIB	5303310510		Screw, 10-24 X 0.625				$ 14.18
NIC	154079601		Nut, Bracket Mtg, (12)   (Replaces: 5304463707)				$ 0.41
