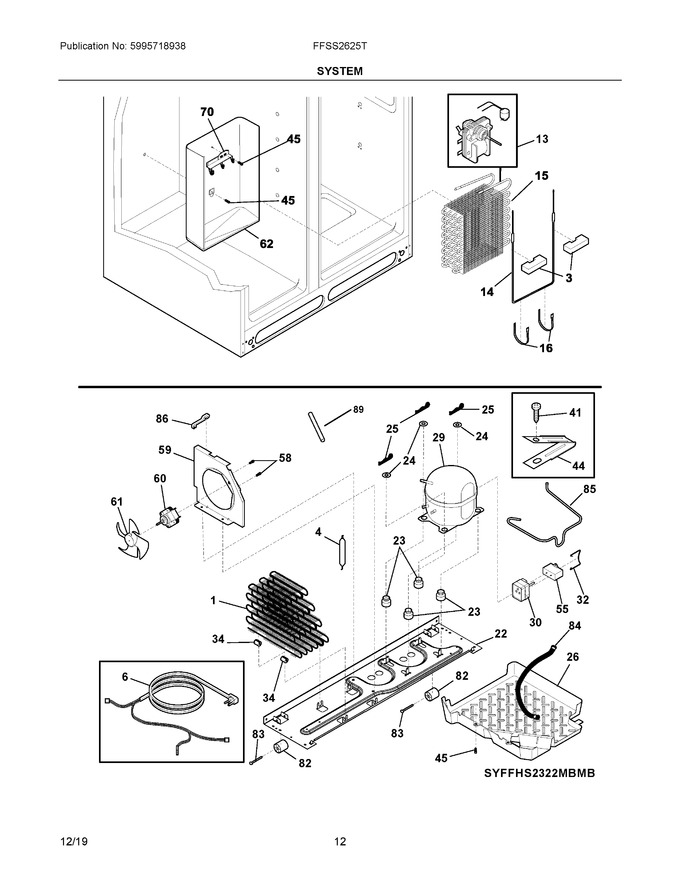

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242106605 | Condenser |
|
$ 196.33 | |||||
| 3 | 218679614 | Block-evap Coil, Styrofoam, (2) |
|
$ 19.85 | |||||
| 4 | 5303305677 | Dryer-filter (Replaces: 242047604) |
|
Immediately | $ 31.67 | ||||
| 6 | 5304521699 | Harness-wiring(machine Compt) |
|
$ 149.09 | |||||
| 13 | 808602602 | Motor, Evaporator Fan, W/harness, & Defrost Therm (Replaces: 808602601) |
|
$ 203.63 | |||||
| 14 | 242044113 | Heater-defrost |
|
Immediately | $ 103.72 | ||||
| 15 | 5303918284 | Evaporator Kit |
|
$ 481.01 | |||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 22 | 240330014 | Base-compressor |
|
- | |||||
| 23 | 218513300 | Grommet-compr Mtg, Compressor, (4) (Replaces: 241659701) |
|
$ 42.53 | |||||
| 24 | 241812301 | Washer-compr Mtg |
|
$ 12.89 | |||||
| 25 | 242037702 | Clip-spring |
|
$ 8.51 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241697602) |
|
$ 79.22 | |||||
| 29 | 5304524545 | Compressor (Replaces: 241650212) |
|
$ 502.97 | |||||
| 30 | 297259515 | Controller, Compressor |
|
$ 74.42 | |||||
| 32 | 216954300 | Clip, Controller |
|
$ 17.01 | |||||
| 34 | 240405201 | Grommet, Rubber, Black, Cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-#8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 55 | 297286803 | Capacitor-run |
|
Immediately | $ 28.77 | ||||
| 58 | 240569202 | Screw, 8-18 X .500 |
|
$ 2.12 | |||||
| 59 | 241946106 | Shroud-cond Fan |
|
$ 45.36 | |||||
| 60 | 242018301 | Motor-condenser Fan (Replaces: 242018304) |
|
Immediately | $ 138.56 | ||||
| 61 | 241639502 | Blade-condenser Fan (Replaces: 241639501) |
|
Immediately | $ 21.99 | ||||
| 62 | 240429405 | Trough-drain |
|
- | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 240335202 | Roller, Compressor Base, Rear |
|
$ 21.27 | |||||
| 83 | 5304455655 | Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241830905 | Tube-drain, Lower |
|
$ 19.85 | |||||
| 85 | 241856909 | Tube-connector, Suction (Replaces: 241856903) |
|
$ 164.57 | |||||
| 86 | 240409302 | Spacer-cond Tube, Black |
|
$ 67.49 | |||||
| 89 | 5303918910 | Tube-process (Replaces: 215346900) |
|
- | |||||
| NIA | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| NIA | 218252201 | Screw, #8 Truss Hd, 10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NIA | 5304521777 | Wiring Harness, Assembly, Control Box, W/thermistors (Replaces: 242303101) |
|
$ 104.05 | |||||
| NIA | 240346701 | Tape-foam Seal, Shroud |
|
$ 29.77 | |||||
| NIB | 240359403 | Screw-fan Shroud, (2) |
|
$ 3.79 |
