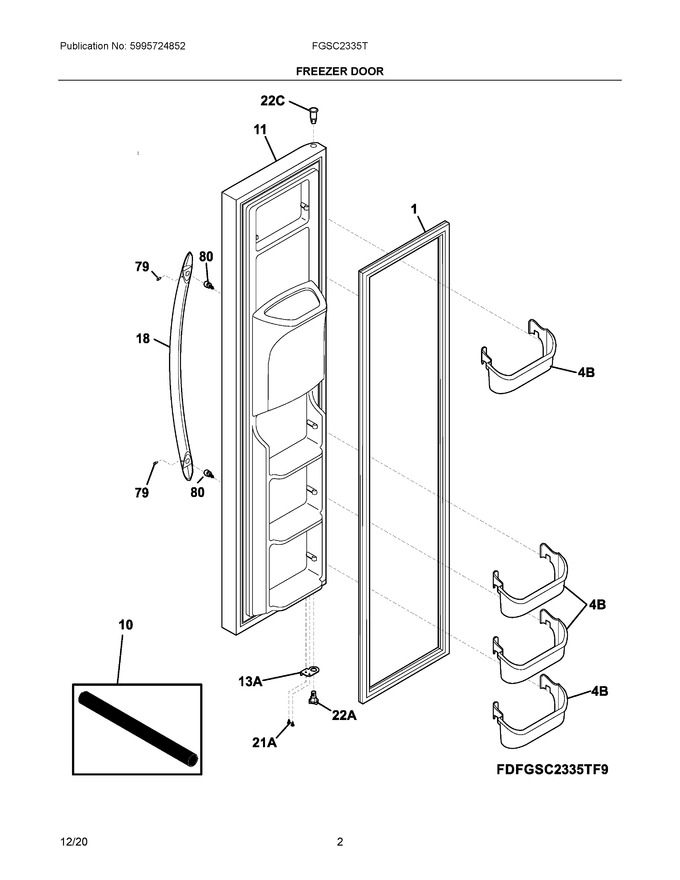

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 241510208 | Gasket-frzr Door, Black, Magnetic (Replaces: 241510204) |
|
Immediately | $ 94.95 | ||||
| 10 | 807688301 | Spring, Water Hose, Frz Door |
|
$ 18.57 | |||||
| 11 | 807460046 | Door-frzr, Black Stainless |
|
$ 643.66 | |||||
| 18 | 241930105 | Handle-door, Black Stainless |
|
$ 186.56 | |||||
| 79 | 218755405 | Screw-set, 10-32 X 0.375 (Replaces: 218755408) |
|
Immediately | $ 20.56 | ||||
| 80 | 218755504 | Screw, Shoulder, #10-ab, Handle Mounting |
|
Immediately | $ 18.60 | ||||
| 13A | 241990202 | Door Stop, Black, Frzr |
|
Immediately | $ 21.27 | ||||
| 21A | 240442708 | Screw-#10-32 X 3/4, Zinc (Replaces: 240442706) |
|
$ 8.34 | |||||
| 22A | 241990302 | Bearing-hinge(frz), Closer |
|
$ 7.09 | |||||
| 22C | 241760402 | Bearing, Hinge, Top |
|
$ 19.13 | |||||
| 4B | 241511602 | Bin-door |
|
$ 52.72 | |||||
| NI | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 20.56 | ||||
| NI | 240451503 | Screw, Ind Hex Wshr Hd, 8-32 X 0.375, Trilobe |
|
$ 3.79 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NI | 5304520997 | Cover, Connector, Door Heater, To Door Harness |
|
- | |||||
| NI | 5304521767 | Harness, Wiring, Door |
|
$ 29.58 | |||||
| NI | 241601002 | Wrench, Allen |
|
- | |||||
| NI | 5303918744 | Kit, Dspnsr Heater, Dc |
|
$ 203.24 |
