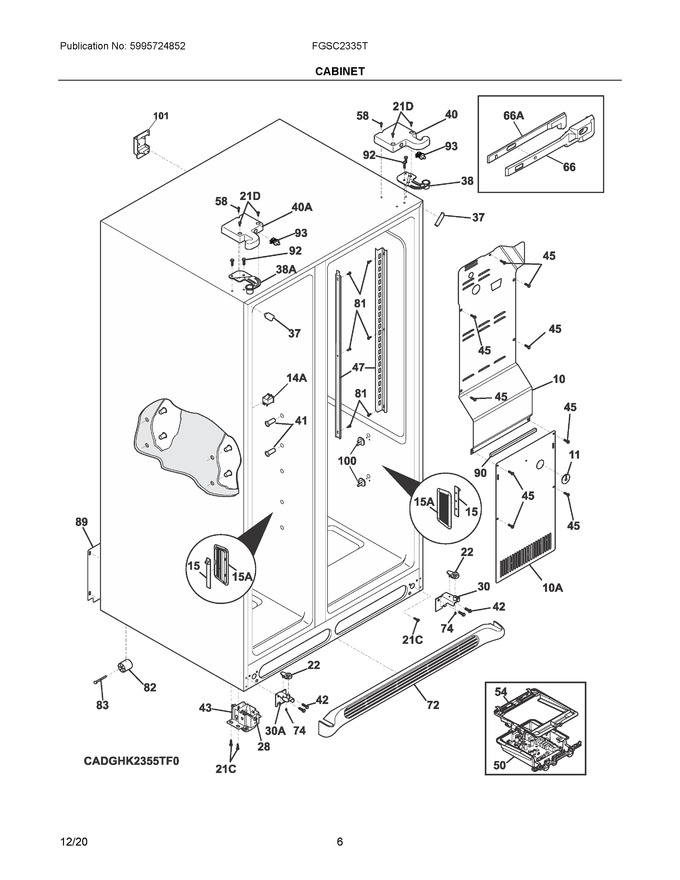

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	808165003		Cover-air Duct		Appelez-nous	-
11	5303208309		Plug-hole, Factory Test				$ 45.50
15	5304520215		Led Light, Pc Board		Appelez-nous	-
22	241917801		Plate-door Closer				$ 7.09
28	5304499445		Bolt-roller Adj, Hex Washer Head, 1/4-20 X 4.020, (2), Special   (Replaces: 240335502)			Immediately	$ 31.33
30	241918001		Bracket-lower Hinge, W/hinge Pin, Rh, And Screw				$ 65.92
37	5304519618		Trim-cabinet Corner, Gray				$ 12.13
38	241761301		Bracket-upper Hinge, Rh				$ 66.25
40	241946709		Cover-upper Hinge, Gray, Rh				$ 66.01
41	241550801		Grommet-shelf Mtg, 1.40" Long				$ 63.70
42	240578902		Screw, Hex Head, 1/4-20 X 5/8			Immediately	$ 14.18
43	5304499445		Roller Assy, Front, (2)			Immediately	$ 31.33
45	241500303		Screw, Hex Washer Head, 8-18ab X 1/2			Immediately	$ 4.55
47	241513003		Channel-shelf Mtg, Side, (2)		Appelez-nous	-
50	5304521260		Board-main Power, W/housing				$ 291.21
54	807854301		Support, Housing, Main Board				$ 45.36
58	241548003		Screw, 10-32 X 3/8				$ 3.03
66	241861301		Housing-damper				$ 79.62
72	241969405		Grille/kickplate, Gray				$ 77.97
74	218755402		Screw-set, 10-32 X .500 In			Immediately	$ 33.00
81	5304455650		Screw, Hex Washer Head, 8-15a X 0.625, Low Profile				$ 14.18
82	240335202		Roller, Compressor Base, Rear				$ 21.27
83	5304455655		Rivet, Flat Head, 1/4 Od X 1-3/4, Roller Pin			Immediately	$ 35.34
89	5304520905		Cover Assembly, Access, Metal			Immediately	$ 74.03
90	218249808		Seal-coil Cover		Appelez-nous	-
92	241710601		Screw, Hex Washer Hd, 1/4 X 7/8, Hinge Mtg				$ 13.46
93	241911710		Switch-light, Grey, (2)   (Replaces: 241911705)				$ 10.62
100	241993101		Support-crisper Cvr			Immediately	$ 5.62
101	242157801		Cover, Tubing, Eps Block				$ 23.13
10A	808217503		Cover-evap Coil, Lower   (Replaces: 808217502)				$ 27.75
14A	241547902		Switch-light/lamp, Frzr Door   (Replaces: 241547901)			Immediately	$ 23.25
15A	242202701		Lens, 3 Led Cluster				$ 30.47
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 14.18
21D	218781101		Screw, Pan Head, 8-18 X 0.625				$ 15.60
30A	241918004		Bracket-lower Hinge, W/hinge Pin, Lh, And Screw				$ 52.45
38A	241761302		Bracket-upper Hinge, Lh				$ 64.49
40A	241946710		Cover-upper Hinge, Gray, Lh			Immediately	$ 64.64
66A	241861201		Slide-damper, Meat Pan				$ 42.48
NI	241890604		Louver, Air Supply, Crisper		Appelez-nous	-
NI	808835601		Harness, Jumper, Light Switch				$ 20.98
NI	240396802		Clamp, Tube/wiring, Nylon, Black/natural		Appelez-nous	-
NI	240494001		Plug-button, White, Cab Liner Holes			Immediately	$ 18.20
NI	242125401		Scoop, Air Supply, Crisper		Appelez-nous	-
NIA	241993001		Support-crisper Cvr			Immediately	$ 19.23
NIA	240346703		Tape-foam				$ 2.28
NIA	241550701		Grommet-shelf Mtg, .96" Long				$ 18.20
NIB	241781601		Seal-return Air				$ 9.10
NIC	242125501		Insulator, Damper				$ 15.60
