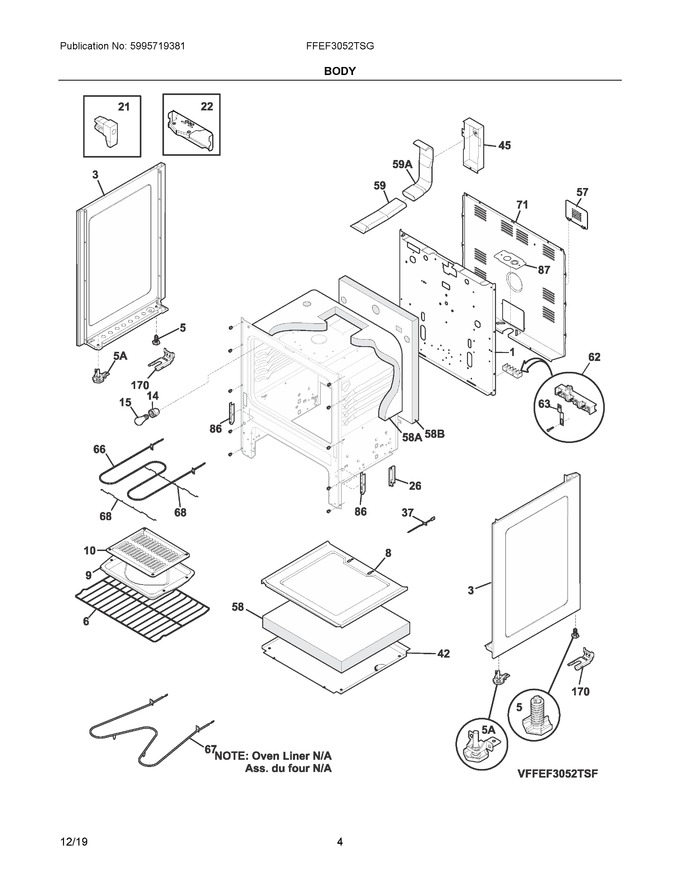

SELECT A DIAGRAM

01 - Cover Sheet


02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	316201301		Back, Main		Appelez-nous	-
3	316400144		Panel, Bodyside, Black, Rh   (Replaces: 316400136)			Immediately	$ 134.69
5	316272900		Screw, Leveling, Plastic, Rear, (2)			Immediately	$ 27.50
6	316067902		Rack, Oven, (2)			Immediately	$ 103.10
8	316201501		Panel, Sump, Oven Bottom				$ 229.64
9	316081900		Pan, Broiler Optional Access0ry				$ 65.89
10	316082000		Insert, Broiler Pan Optional Access0ry				$ 68.85
14	316116400		Receptacle, Oven Light			Immediately	$ 56.10
15	316538904		Lamp, Oven Light			Immediately	$ 20.48
21	316408000		Clip, Bodyside				$ 18.20
22	316286300		Bracket-bodyside, (2)				$ 17.72
26	316206300		Support, Chassis, (2)				$ 19.72
37	316233903		Probe, Oven Temp   (Replaces: 316217008)			Immediately	$ 57.29
42	316547400		Shield, Wool, Lower				$ 87.18
45	316234100		Shield, Wire, Vent Tube				$ 70.16
57	316283600		Cover, Access				$ 12.50
58	3200847		Insulation, Oven Bottom		Appelez-nous	-
59	316208201		Tube, Oven Vent, Lower				$ 77.26
62	5303935271		Terminal Block Kit				$ 73.56
63	316278800		Plate, Grounding Strap		Appelez-nous	-
66	316203200		Element, Broil, 4 Pass			Immediately	$ 164.45
67	316225001		Element, Bake			Immediately	$ 191.86
68	316203400		Support, Broil Element				$ 70.88
71	316283204		Shield, Rear Wall				$ 56.12
86	316441300		Receptacle, Hinge				$ 21.97
87	316081200		Bracket, Cable Mtg		Appelez-nous	-
170	316112005		Anti Tip Kit, Assy, W/template			Immediately	$ 18.91
3A	316400145		Panel, Bodyside, Black, Lh   (Replaces: 316400137)			Immediately	$ 133.93
58A	316047707		Insulation, 1", Oven Wrapper				$ 150.92
58B	316054202		Insulation, 1", Oven Back				$ 76.59
59A	316208304		Tube, Oven Vent, Upper				$ 80.09
5A	5304509869		Leveling Leg Assy, Metal, Front, (2), Bracket & Leg			Immediately	$ 15.08
NI	316519700		Screw, Cup Pt, 8-18 X 0.375, Chrome   (Replaces: 316021108)				$ 10.02
NI	316089500		Screw, 10-16 X .486				$ 13.46
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	316279600		Screw, Bracket, Stiffener, (4)				$ 12.05
NI	5304516202		Wiring Harness, Main		Appelez-nous	-
NI	316021132		Screw, 8-18 X 11/16, Black, (3)				$ 12.89
NI	5304491650		Block, Stability, Concrete		Appelez-nous	-
NI	316210800		Plug, Hole, Light Switch				$ 10.63
NI	316021109		Screw, Hex Head Cup Pt, 8-18 X 0.375, Black   (Replaces: 316021105)			Immediately	$ 27.50
NI	316418901		Screw, Trilobe, 10-32 X 5/16", Black				$ 14.18
NIA	316001017		Screw, Ground Wire   (Replaces: 316001003)				$ 3.03
NIA	316112005		Bracket, Anti-tip   (Replaces: 316107200)			Immediately	$ 18.91
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
NIA	316248900		Spacer, Shield, Rear Wall		Appelez-nous	-
NIB	316116000		Screw, Concrete, 1.75", Anti-tip Brkt				$ 12.89
NIB	316205500		Nut, Hex Flange, 3/8 10-32				$ 11.34
NIC	316541700		Template, Anti-tip		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
