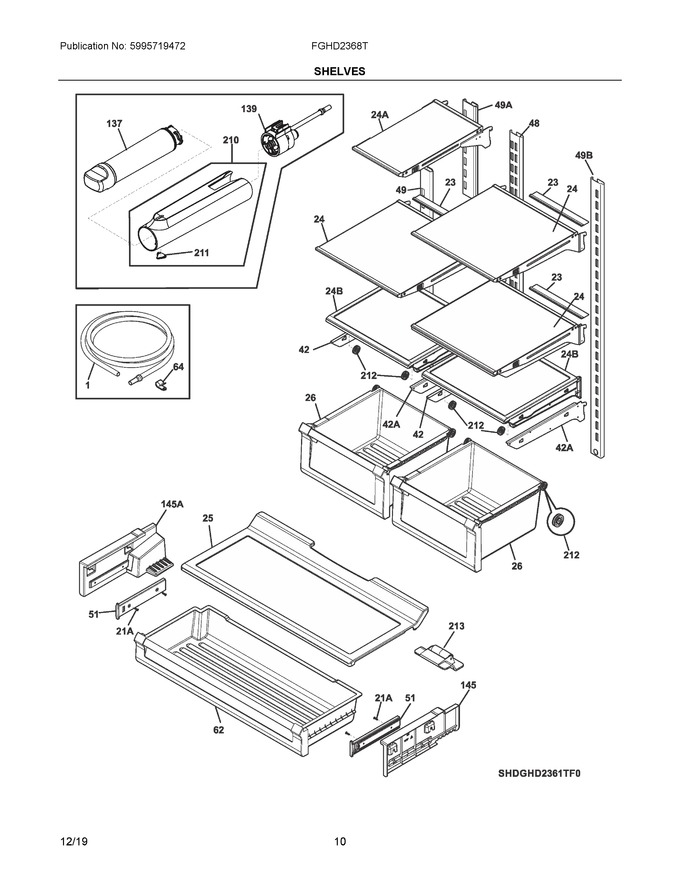

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 242220119 | Tube-water, 97.5", Natural, Filter Base To, Secondary Valve |
|
Immediately | $ 30.47 | ||||
| 23 | 5304510345 | Buffer, Shelf, Air |
|
$ 12.89 | |||||
| 24 | 5304512639 | Shelf Assembly, 1/2 Width, Rail/trim, Glass |
|
Immediately | $ 174.43 | ||||
| 25 | 5304508026 | Cover, Deli Drawer, W/glass |
|
$ 162.30 | |||||
| 26 | 5304512617 | Pan-crisper, Assembly, W/roller |
|
Immediately | $ 208.69 | ||||
| 42 | 5304508043 | Rail, Crisper Cover, Lh Side |
|
Immediately | $ 90.25 | ||||
| 48 | 242122101 | Channel-shelf Mtg, Center |
|
$ 80.09 | |||||
| 49 | 5304508035 | Channel-shelf Mtg, Side, Lh |
|
$ 97.83 | |||||
| 51 | 242120001 | Slide-deli |
|
Immediately | $ 165.85 | ||||
| 62 | 242096815 | Pan-deli |
|
$ 169.65 | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 137 | EPTWFU01 | Filter Assembly, Puresource, W/cap (Replaces: 5304520985) |
|
Immediately | $ 75.59 | ||||
| 139 | 5304521650 | Manifold Water Filter |
|
- | |||||
| 145 | 5304508027 | Support, Deli Cover, Rh |
|
$ 16.69 | |||||
| 210 | 5303918723 | Housing, Water Filter, W/plug & Pad |
|
Immediately | $ 26.23 | ||||
| 211 | 807932201 | Plug, Filter Housing |
|
- | |||||
| 212 | 5304508016 | Roller, Crisper Pan |
|
Immediately | $ 9.42 | ||||
| 213 | 242010901 | Roller Assy, Deli Pan |
|
$ 49.62 | |||||
| 145A | 5304508028 | Support, Deli Cover, Lh |
|
$ 95.56 | |||||
| 21A | 241953902 | Screw, Quad Hilo, #8-18 X 0.380 |
|
Immediately | $ 17.11 | ||||
| 24A | 5304512642 | Flip Shelf, 1/4, W/brackets |
|
$ 219.17 | |||||
| 24B | 5304508761 | Cover, Crisper, W/glass |
|
Immediately | $ 129.31 | ||||
| 42A | 5304508042 | Rail, Crisper Cover, Rh Side |
|
Immediately | $ 92.42 | ||||
| 49A | 5304531311 | Channel-shelf Mtg, Center, Icemaker Shelf (Replaces: 242122001) |
|
- | |||||
| 49B | 242122301 | Channel-shelf Mtg, Side, Rh |
|
$ 77.97 | |||||
| NI | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| NIA | 241695904 | Screw, Type Ab, #10-16 X .5 |
|
$ 14.41 | |||||
| NIA | A13402902 | Bypass Assembly, No Filter, Optional Part (Replaces: 807946702) |
|
Immediately | $ 104.38 | ||||
| NIA | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| NIA | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NIB | 242039702 | Screw, Shoulder, #10-16, (2) |
|
$ 4.26 |
