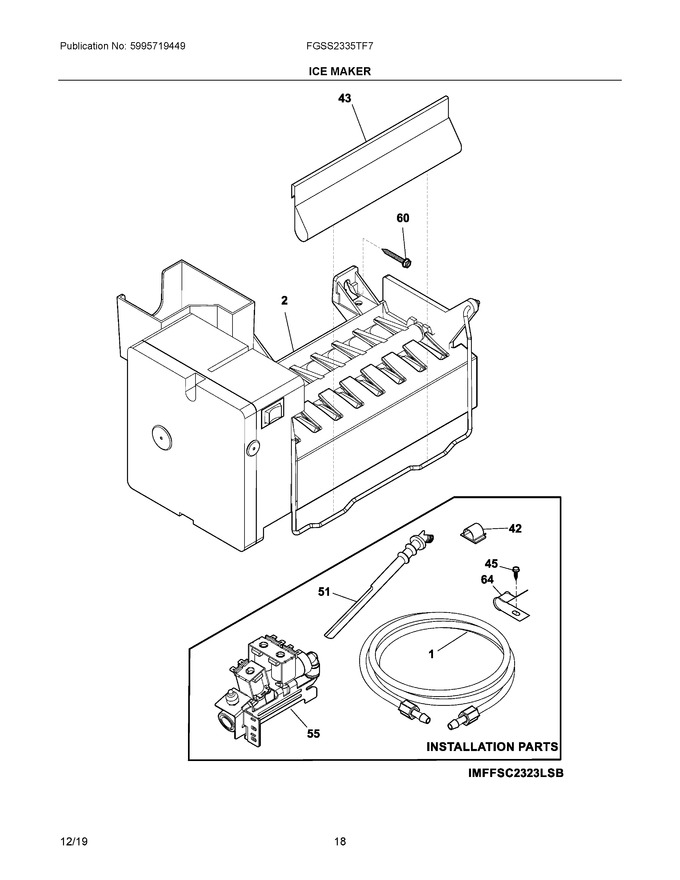

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976438 | Tube, Water, 62", Natural 62", Door, Btm Door To Dsp |
|
Immediately | $ 20.56 | ||||
| 2 | 5304468880 | S/a Pur-ice Maker (Replaces: 241709810) |
|
$ 227.47 | |||||
| 42 | 242036801 | Clip-tube, Drain |
|
$ 96.39 | |||||
| 43 | 241720601 | Extension |
|
$ 20.56 | |||||
| 45 | 241500303 | Screw, Hex Washer Head, 8-18ab X 1/2 |
|
Immediately | $ 4.55 | ||||
| 51 | 241796407 | Tube-water Fill, Extension |
|
$ 19.85 | |||||
| 55 | 242252702 | Valve, Solenoid, Triple |
|
Immediately | $ 132.71 | ||||
| 60 | 5304455651 | Screw, Hex Washer Head, 8-15a X 0.500 |
|
$ 14.41 | |||||
| 64 | 240396802 | Clamp, Tube/wiring, Nylon, Black/natural |
|
- | |||||
| NIA | 218976439 | Tube-water Inlet, 5/16 - 32", Yellow, Valve To Door, Wtr Vlv To Door |
|
$ 19.13 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 240561701 | Seal-water Inlet, Inlet Valve, To Ice Maker (Replaces: 240561703) |
|
Immediately | $ 20.56 | ||||
| NIC | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 | |||||
| NID | 242220206 | Tube-water Inlet, .315 - 97.50", Brown/tan |
|
$ 46.78 |
