SELECT A DIAGRAM

01 - Cover Sheet


02 - Oven,cabinet

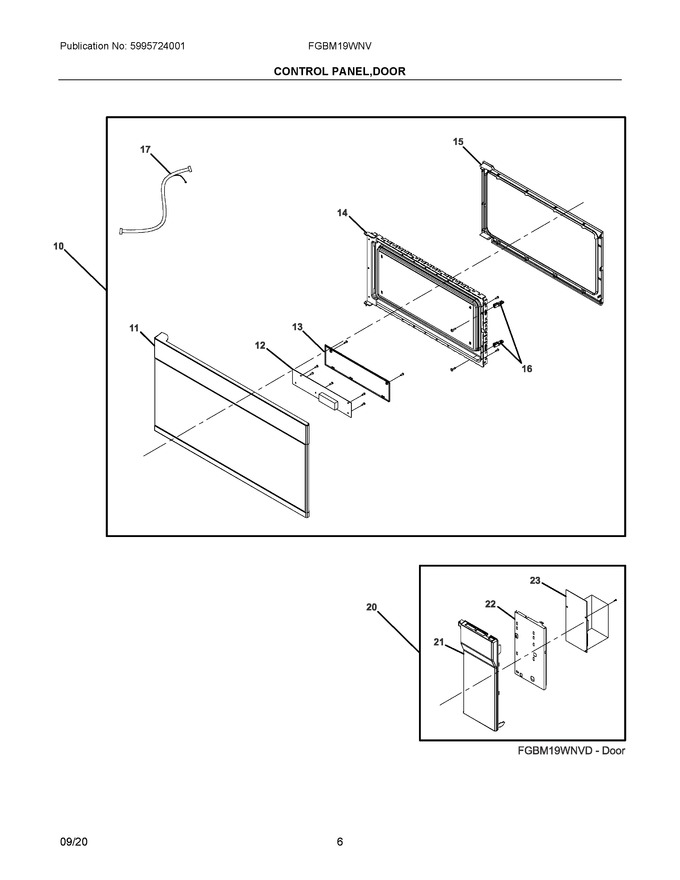

03 - Control Panel,door


04 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
10	5304523362		Door Assembly, Complete, Black Stainless				$ 873.65
11	5304523272		Door Assembly, Outer, Black Stainless		Appelez-nous	-
12	5304523245		Pc Board, Display				$ 254.47
13	5304523246		Cover, Display Board		Appelez-nous	-
14	5304523273		Frame Assembly, Door				$ 148.10
15	5304523248		Gasket, Door				$ 16.39
16	5304523249		Latch, Door				$ 8.77
17	5304523250		Harness, Display Board				$ 52.05
20	5304523274		Control Assembly, Complete, W/pc Board				$ 606.54
21	5304523252		Panel, Control			Immediately	$ 97.78
22	5304523253		Shield, Control Panel				$ 32.54
23	5304523275		Pc Board, Control/power			Immediately	$ 327.49

    View Diagram in Separate Window       Print Part List
