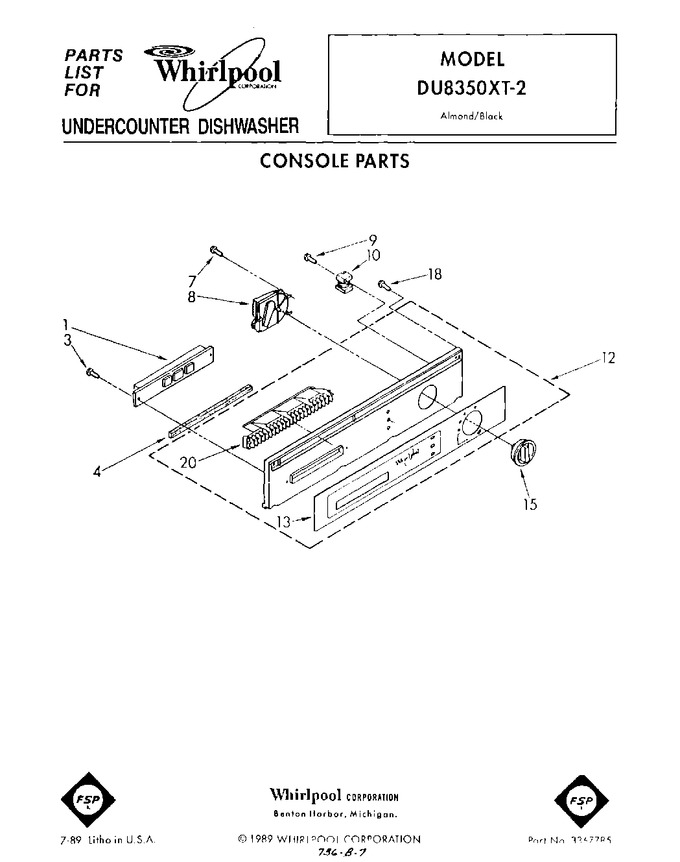

01 - Console
02 - Tub , Literature And Optional
03 - Door
04 - Dishrack And Panel
05 - Heater, Pump And Lower Sprayarm
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3367814 | Switch, Pushbutton |
|
- | |||||
| 3 | WP488729 | Screw, 8-18 X 1/2 (2) (Replaces: 304234) |
|
Immediately | $ 7.01 | ||||
| 4 | 3368537 | Foam, Seal |
|
- | |||||
| 7 | WP304231 | Screw, 8-16 X 1/2 Slot Hex Wash Hd (3) (Replaces: 304231) |
|
Immediately | $ 6.98 | ||||
| 8 | 3368830 | Timer |
|
- | |||||
| 9 | 304232 | Screw, 7-18 X 1-3/8 |
|
- | |||||
| 10 | 304409 | Relay, Start |
|
- | |||||
| 12 | 3367888 | Console |
|
- | |||||
| 13 | 3367842 | Insert, Decorative |
|
- | |||||
| 15 | 3367282 | Knob, Timer |
|
- | |||||
| 18 | WP90767 | Screw, 6-32 X 7/16 (4) (Replaces: 300890) |
|
Immediately | $ 7.04 | ||||
| 20 | 304602 | Grill, Vent |
|
- |
