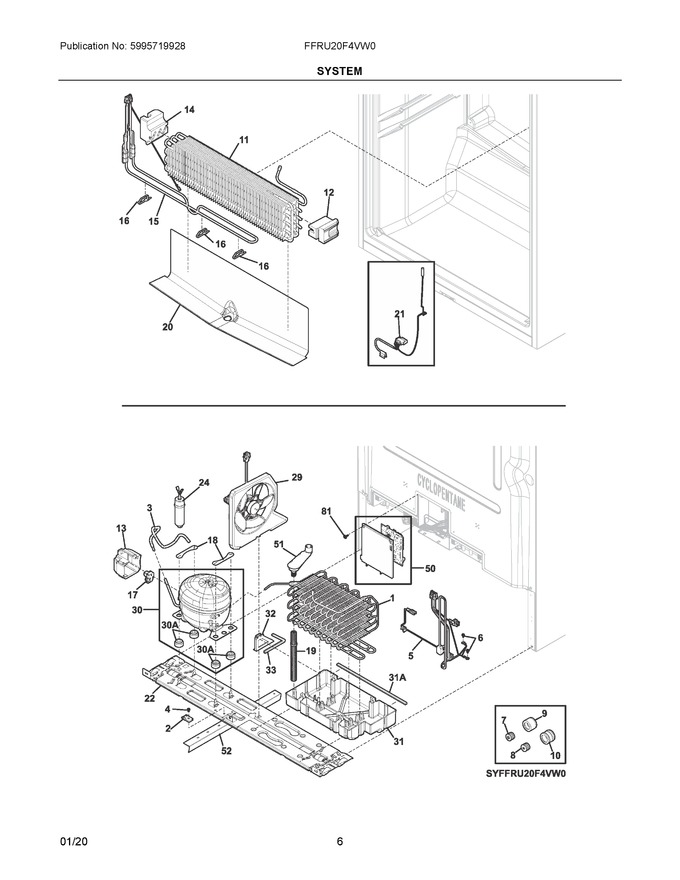

01 - Cover Sheet
02 - Door
03 - Cabinet
04 - System
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304534421 | Condenser, Dynamic (Replaces: 5304524200) |
|
- | |||||
| 2 | 5304454459 | Clamp-cable |
|
- | |||||
| 3 | 5304524046 | Tube, Suction Jumper |
|
$ 19.52 | |||||
| 4 | 241941202 | Screw, Hex Washer Head, 8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| 5 | 5304524022 | Harness, Wiring, Machine Compt. |
|
Immediately | $ 66.34 | ||||
| 6 | 241500305 | Screw, Hex Washer Head, 8-18ab X 0.625 (Replaces: 241500304) |
|
$ 3.03 | |||||
| 7 | 5304524187 | Lock Ring, Dryer Out |
|
$ 8.87 | |||||
| 8 | 5304524188 | Lock Ring, Evaporator In |
|
- | |||||
| 9 | 5304524189 | Lock Ring, Evaporator Out |
|
- | |||||
| 10 | 5304524190 | Lock Ring, Jumper In |
|
$ 12.02 | |||||
| 11 | 5304524321 | Evaporator, Coil |
|
- | |||||
| 12 | 5304523831 | Support, Evaporator, Rh |
|
$ 3.62 | |||||
| 13 | 5304522303 | Cover, Electricals, Compressor |
|
- | |||||
| 14 | 5304523832 | Support, Evaporator, Lh |
|
Immediately | $ 3.62 | ||||
| 15 | 5304523833 | Heater, Defrost |
|
Immediately | $ 81.99 | ||||
| 16 | 5308000110 | Strap-evap/heater, Aluminum, (2) |
|
Immediately | $ 59.82 | ||||
| 17 | 5304538465 | Controller, Compressor Ptc (Replaces: 5304522267) |
|
Immediately | $ 33.52 | ||||
| 18 | 5304519812 | Clamp, Compressor |
|
- | |||||
| 19 | 5304523706 | Drain Tube, Corrugated |
|
- | |||||
| 20 | 5304524755 | Trough, Drain (Replaces: 5304523720) |
|
$ 51.34 | |||||
| 21 | 5304523788 | Harness Assembly, Temp/defrost, W/thermostats |
|
Immediately | $ 38.56 | ||||
| 22 | 5304523693 | Base Assembly, Compressor, W/rollers |
|
- | |||||
| 24 | 5304522104 | Capacitor, Run, 10uf |
|
$ 26.54 | |||||
| 29 | 5304519734 | Fan Assembly, Condenser, W/shroud-foam |
|
Immediately | $ 156.99 | ||||
| 30 | 5304519758 | Compressor, Assembly, Th1114hy, W/grommets |
|
Immediately | $ 390.80 | ||||
| 31 | 5304523709 | Pan, Drain |
|
$ 35.42 | |||||
| 32 | 5304519745 | Baffle, Drain Pan, Air Block |
|
$ 7.80 | |||||
| 33 | 5304519751 | Seal, Foam, Air Block |
|
$ 3.08 | |||||
| 50 | 5304524126 | Main Board, Assembly, W/housing |
|
Immediately | $ 206.89 | ||||
| 51 | 5304523802 | Drain Jumper, Assembly |
|
- | |||||
| 52 | 5304523694 | Baffle, Divider |
|
$ 7.96 | |||||
| 81 | 5304519765 | Screw, Hx Wash Hd, M4.2 X 12 |
|
Immediately | $ 3.03 | ||||
| 30A | 811978901 | Grommet, Compressor |
|
- | |||||
| 31A | 5304519744 | Tape, Drain Pan, Foam, Front |
|
- |
