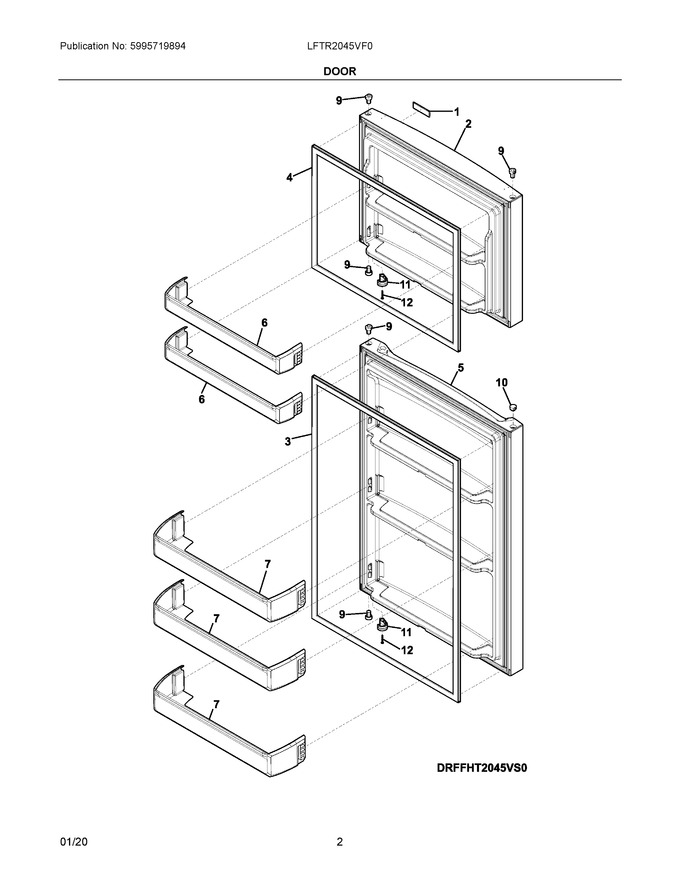

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304511146 | Badge, Frigidaire, Chrome |
|
Immediately | $ 47.03 | ||||
| 2 | 5304532083 | Door Assembly, Freezer, Stainless, Ez Care (Replaces: 5304522119) |
|
$ 229.11 | |||||
| 3 | 5304523138 | Gasket, Door, Gray, Refrigerator |
|
Immediately | $ 197.24 | ||||
| 4 | 5304523139 | Gasket, Door, Gray, Freezer |
|
Immediately | $ 179.05 | ||||
| 5 | 5304522122 | Door Assembly, Refrigerator, Stainless, Ez Care |
|
- | |||||
| 6 | 5304524054 | Bin, Door, White, Freezer |
|
$ 50.61 | |||||
| 7 | 5304524055 | Bin, Door, 6", Refrigerator |
|
Immediately | $ 81.06 | ||||
| 9 | 5304522194 | Bearing, Hinge, Gray |
|
Immediately | $ 2.28 | ||||
| 10 | 5304522187 | Cover, Hinge Bearing, Gray |
|
Immediately | $ 7.44 | ||||
| 11 | 5304522238 | Hook, Door Closer, Gray |
|
Immediately | $ 8.34 | ||||
| 12 | 241953905 | Screw, 8-18 X 1.25 |
|
Immediately | $ 11.38 |
