SELECT A DIAGRAM

01 - Cover Sheet


02 - Control Panel


03 - Body

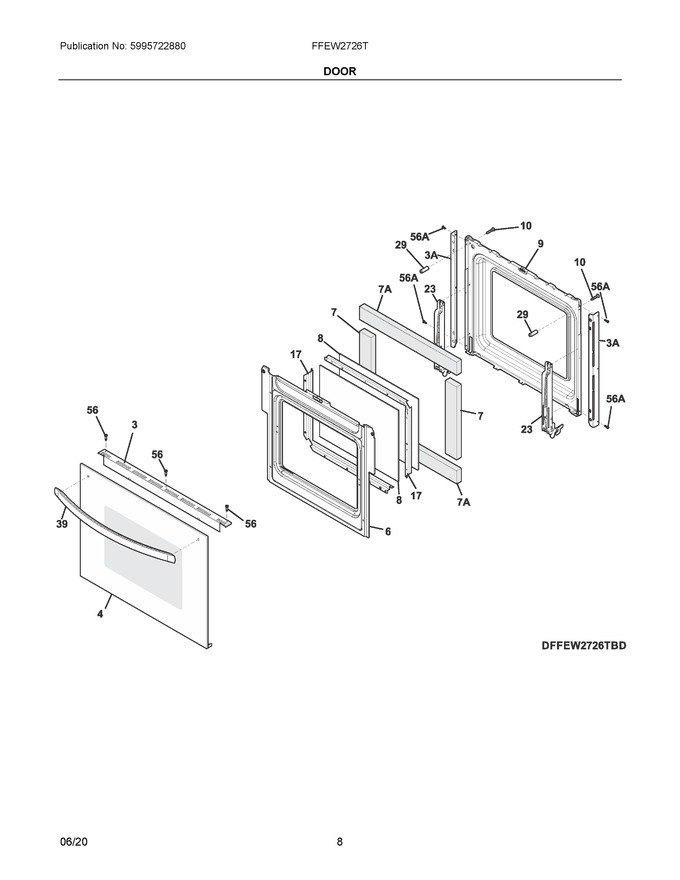

04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
3	139023601		Trim, Oven Door, Black, Upper				$ 47.78
4	5304523467		Door Glass, Assembly, Outer, White		Appelez-nous	-
6	139014203		Baffle, Door		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085802		Glass, Door, Inner, (2), Shr		Appelez-nous	-
9	139002905		Liner, Oven Door			Immediately	$ 110.73
10	316433304		Screw, 10-14 X 1.920", Handle Mtg.				$ 14.02
17	318264735		Spacer, Glass, (2)				$ 64.49
23	316575955		Hinge, Oven Door, White		Appelez-nous	-
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	5304511010		Handle, Door, White		Appelez-nous	-
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
56A	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
7A	318372018		Insulation, 20.5 X 2.375, 1" Thick, (2)				$ 14.18
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18

    View Diagram in Separate Window       Print Part List
