SELECT A DIAGRAM

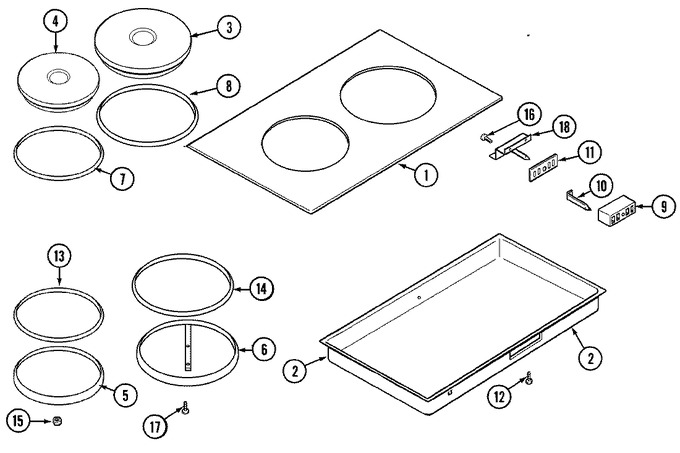

01 - Solid Element Cartridge
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 04100450 | Backplate | 11 |
|
- | ||||
| 1 | 04100836 | Top Assy (black) | 11 |
|
- | ||||
| 2 | 04100451 | Pan, Cartridge | 11 |
|
- | ||||
| 3 | Y04100403 | Element W/ring (large) | 11 |
|
- | ||||
| 4 | Y04100362 | Element W/ring (small) | 11 |
|
- | ||||
| 5 | 703475 | Collar (sm) | 11 |
|
- | ||||
| 6 | 04100402 | Bracket, Large | 11 |
|
- | ||||
| 6 | 703408 | Bracket, Small | 11 |
|
- | ||||
| 6 | 703476 | Collar (lg) | 11 |
|
- | ||||
| 9 | WPY708730 | Block, Terminal (Replaces: Y708730) | 11 |
|
Immediately | $ 87.44 | |||
| 10 | Y708572 | Spade, Contact | 11 |
|
Immediately | $ 11.34 | |||
| 11 | 708834 | Insulator, Contact Spade | 11 |
|
$ 13.49 | ||||
| 12 | WP12990527 | Screw (Replaces: Y708955) | 11 |
|
Immediately | $ 7.15 | |||
| 13 | 04100348 | Gasket (small) | 11 |
|
- | ||||
| 14 | Y04100079 | Wire, Natural | 11 |
|
- | ||||
| 14 | Y04100077 | Wire, Natural | 11 |
|
- | ||||
| 14 | 04100349 | Seal, Large | 11 |
|
- | ||||
| 14 | Y04100078 | Wire, Natural | 11 |
|
- | ||||
| 15 | 703417 | Nut, Hex | 11 |
|
- | ||||
| 16 | WP488234 | Screw (Replaces: 708861) | 11 |
|
$ 6.07 | ||||
| 17 | 04100076 | Nut, Hex | 11 |
|
- | ||||
| 17 | Y04100080 | Sensor, Glass Protector | 11 |
|
- | ||||
| 18 | Y04100060 | Bracket, Retaining | 11 |
|
- |
