SELECT A DIAGRAM

01 - Freezer Compartment


02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System

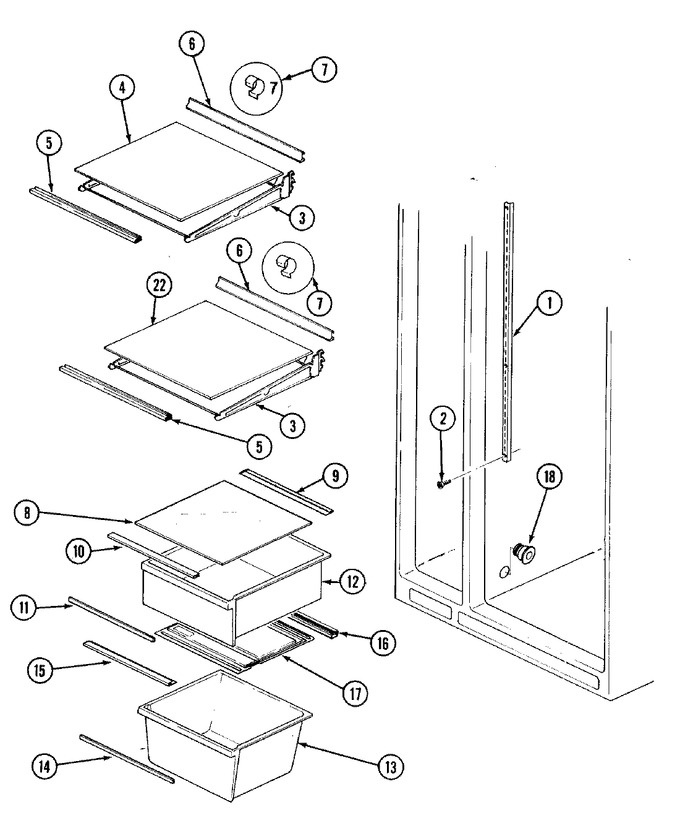

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67311-1		Rail, Shelf Support	10	Appelez-nous	-
2	400037-28		Screw	10	Appelez-nous	-
3	65618-6		Frame, Shelf	10	Appelez-nous	-
4	66604-31		Shelf	10	Appelez-nous	-
5	66649-1		Trim	10	Appelez-nous	-
6	65276-10		Trim	10	Appelez-nous	-
7	66333-1		Clip, Shelf Trim	10	Appelez-nous	-
8	65687-5		Shelf, Crisper	10	Appelez-nous	-
9	68157-1		Seal, Crisper Pan (rear)	10	Appelez-nous	-
10	66650-1		Trim	10	Appelez-nous	-
11	68124-79		Insert	10	Appelez-nous	-
12	66636-48		Pan, Crisper	10	Appelez-nous	-
12	66636-64		Pan, Crisper	10	Appelez-nous	-
13	66510-19		Pan, Meat	10	Appelez-nous	-
14	68124-79		Insert	10	Appelez-nous	-
15	65648-1		Seal, Meat Pan (front)	10	Appelez-nous	-
16	65649-1		Seal, Meat Pan (rear)	10	Appelez-nous	-
17	65608-3		Cover, Meat Pan	10	Appelez-nous	-
18	53726-2		Tunnel, Air (meat)	10	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
