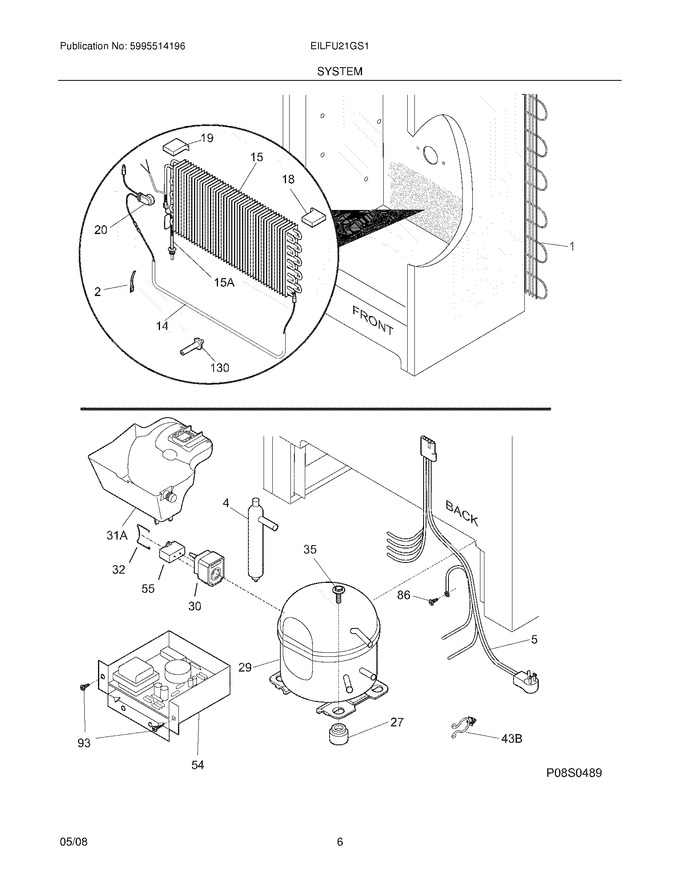

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	75308000110		Strap-evap/heater,aluminum ,(2)		Appelez-nous	-
4	7216987500		Drier-filter		Appelez-nous	-
18	7297078700		Insulator-evap,styrofoam		Appelez-nous	-
19	7297078800		Insulator-evap,styrofoam		Appelez-nous	-
20	7216872200		Thermostat,defrost		Appelez-nous	-
27	216498900		Grommet,compressor   (Replaces: 5308002681)				$ 13.01
30	7216954218		Controller		Appelez-nous	-
32	7216954300		Clip,controller		Appelez-nous	-
35	7240491503		Screw-compressor Mtg,1/4-28 X 1.16 ,(4)		Appelez-nous	-
55	5304464438		Capacitor-run,180-200 Vac ,15 Microfarad   (Replaces: 216236200)			Immediately	$ 35.38
86	7216036601		Screw,rwhd ,8-32a X 0.500 ,gx-ca		Appelez-nous	-
93	216858001		Screw,ph Truss Head ,8-18ab X 0.500   (Replaces: 5304460605)			Immediately	$ 10.85
130	7297244700		Support,evaporator Mtg		Appelez-nous	-
15A	7297217900		Heat Exchanger,suct/cap Tube		Appelez-nous	-
31A	7297217000		Pan-drain		Appelez-nous	-
43B	7297048400		Clip		Appelez-nous	-
F1	75300083897		Condenser		Appelez-nous	-
F14	216730700		Heater-defrost   (Replaces: 7216730700)			Immediately	$ 116.44
F15	7216997300		Evaporator		Appelez-nous	-
F29	7297223500		Compressor,w/o Electricals		Appelez-nous	-
F5	7297170300		Harness-main		Appelez-nous	-
F54	216979700		Electronics,high Voltage   (Replaces: 7216979700)				$ 359.30
FNI	7297169900		Cord-power,flat		Appelez-nous	-
NI	7216502500		Sleeve,suction Line		Appelez-nous	-
NI	7240555002		Screw-no.8-32 X 3/8		Appelez-nous	-
NI	7297014500		Plug-suction Line		Appelez-nous	-
NI	297018400		Thermistor   (Replaces: 7297018400)			Immediately	$ 79.52
NI	7297102800		Spacer-tube		Appelez-nous	-
NI	7216629601		Screw,hex Washer Head ,10-16 X 0.500 ,tapping		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
