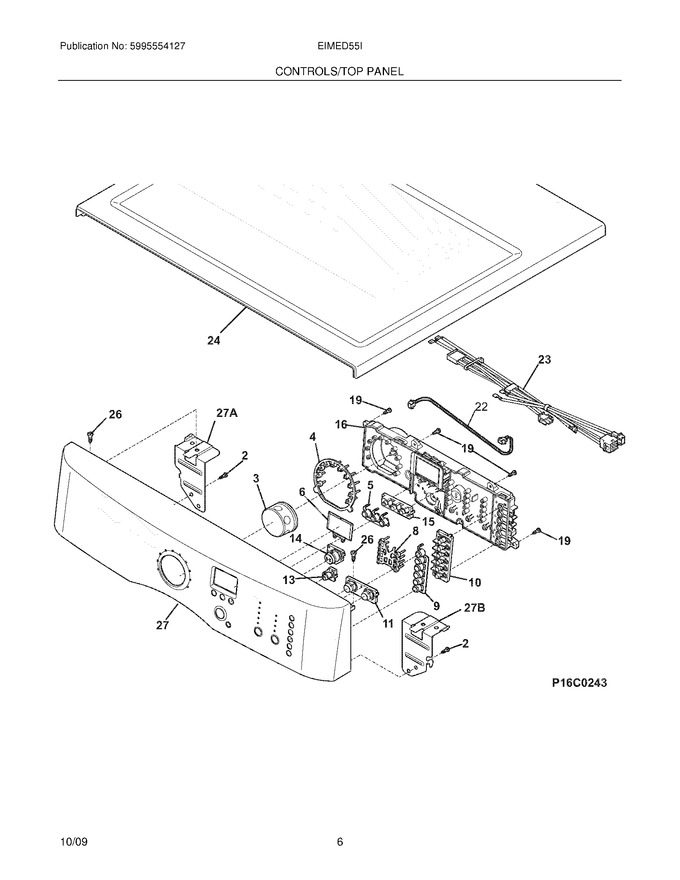

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	131168200		Screw,pan Head ,8-18b X 0.31			Immediately	$ 14.18
3	134766500		Knob,retracting ,complete Asmy				$ 175.72
4	134907400		Pipe,knob Light				$ 14.56
5	134872100		Ring,display Button ,light		Appelez-nous	-
6	134767700		Lens,lcd				$ 14.89
8	134902210		Pipe,modifer Light ,group 2&3		Appelez-nous	-
9	134894200		Ring,option Button ,light		Appelez-nous	-
10	137032300		Button,option		Appelez-nous	-
11	137032200		Button,modifier ,button 2 & 3		Appelez-nous	-
13	137032000		Button,off		Appelez-nous	-
14	137015900		Button,start/pause				$ 32.42
15	137031900		Button,display				$ 58.12
19	134402900		Screw,phillips ,6-19 X 0.650				$ 29.77
24	134638510		Panel,work Top ,white				$ 217.22
26	131205100		Screw,no.8 Pan Head ,10-10b X 0.500 ,cr/sq Drive			Immediately	$ 14.18
27	137249310		Panel,control Console				$ 134.45
27A	134710900		Bracket,control Panel ,left Hand ,mounting				$ 21.27
27B	134711000		Bracket,control Panel ,right Hand ,mounting				$ 23.63
F16	134994710		Control Board,user Interface ,with Housing		Appelez-nous	-
F22	134790700		Harness,user Interface				$ 88.36
F23	137242300		Harness,main ,mist				$ 194.62
FNI	137150200		Terminal,block Kit ,main				$ 31.90
NI	134926600		Damper,sound				$ 14.18
