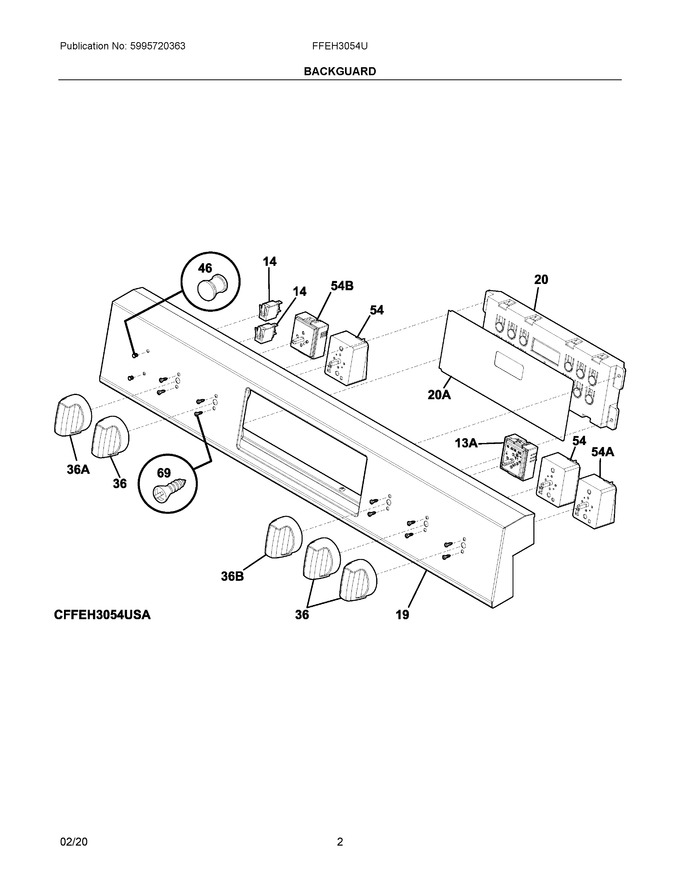

02 - Backguard


03 - Body


04 - Top/drawer


05 - Door


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
14	316022500		Light/lamp, Indicator, Black, 125 V			Immediately	$ 53.57
19	5304522016		Panel, Control		Appelez-nous	-
20	5304514108		Controller, Electronic, Oven, Es330			Immediately	$ 294.38
36	5304515466		Knob, Inf Switch, Black, Single		Appelez-nous	-
46	316557300		Lens-light/lamp, Indicator, Clear			Immediately	$ 16.77
54	316436000		Switch, Infinite, Small Element			Immediately	$ 80.34
69	5303288565		Screw, Truss Sqdr, 8-32 X 3/16, Switch Mtg				$ 3.12
13A	5304522964		Switch, Infinite, Warmer				$ 59.16
20A	316419380		Overlay, Eoc, Black, Es330			Immediately	$ 35.65
36A	5304515468		Knob-inf Switch, Dual, White				$ 17.44
36B	5304521976		Knob, Inf Switch, White, Warm				$ 31.86
54A	316436001		Switch, Infinite, Large Element			Immediately	$ 51.68
54B	140173679014		Switch, Infinite, Radiant Dual   (Replaces: 5304522918)			Immediately	$ 33.31
NI	316021109		Screw, 8-18 X 0.5, Chrome			Immediately	$ 27.50
NI	5304522931		Harness, Wiring, Backsplash				$ 191.11
NI	5304520393		Spacer, Foam Block, 2" X 1", W/adhesive		Appelez-nous	-
NI	316089500		Screw, 10-16 X .486				$ 13.46
