01 - Cover Sheet
02 - Control Panel
03 - Upper Oven
04 - Lower Oven

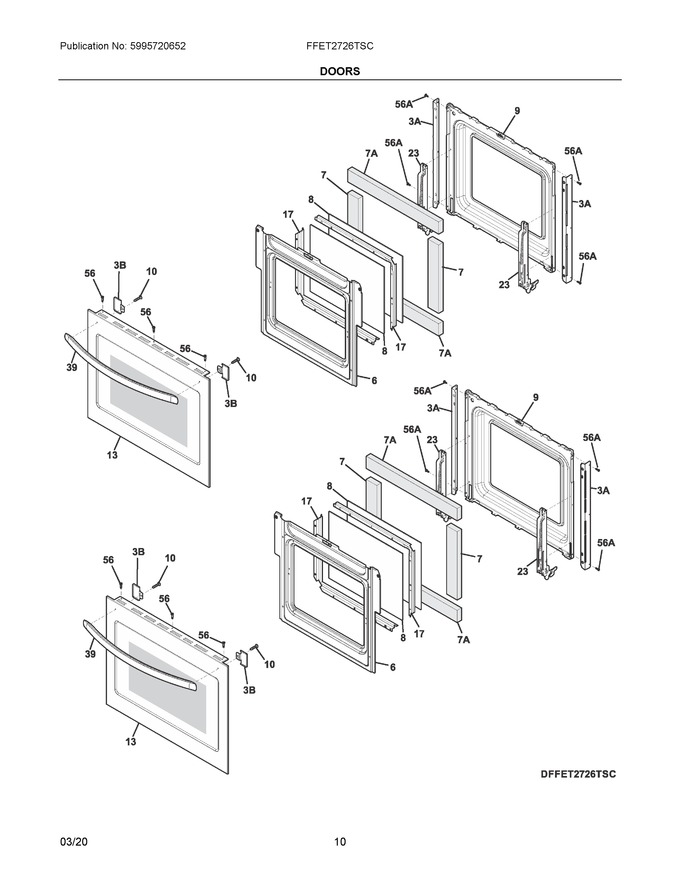

05 - Doors
06 - Wiring Diagram
07 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 139014203 | Baffle, Door |
|
- | |||||
| 7 | 318372017 | Insulation, Door |
|
$ 16.30 | |||||
| 8 | 139085802 | Glass, Door, Inner, (2), Shr |
|
- | |||||
| 9 | 139002913 | Liner, Oven Door |
|
$ 148.84 | |||||
| 10 | 5304414648 | Screw, Handle Mtg. |
|
$ 14.18 | |||||
| 13 | 5304518940 | Door Assembly, Outer, Stainless/black, W/trim |
|
- | |||||
| 17 | 318264729 | Spacer, Glass, (2) |
|
- | |||||
| 23 | 316575955 | Hinge, Oven Door, White |
|
- | |||||
| 39 | 5304512968 | Handle, Door, Stainless |
|
$ 120.74 | |||||
| 56 | 5303311306 | Screw, 8-18 X 0.375 |
|
- | |||||
| 3A | 139014401 | Trim, Oven Door, Black, Side, (2), Vented |
|
$ 32.62 | |||||
| 3B | 318262104 | Cover, Rear Door, Black, (2) |
|
$ 24.99 | |||||
| 56A | 5303324184 | Screw, Truss Head, #8-32 X 3/8 (Replaces: 809136201) |
|
Immediately | $ 14.18 | ||||
| 7A | 318372018 | Insulation, 20.5 X 2.375, 1" Thick, (2) |
|
$ 14.18 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
