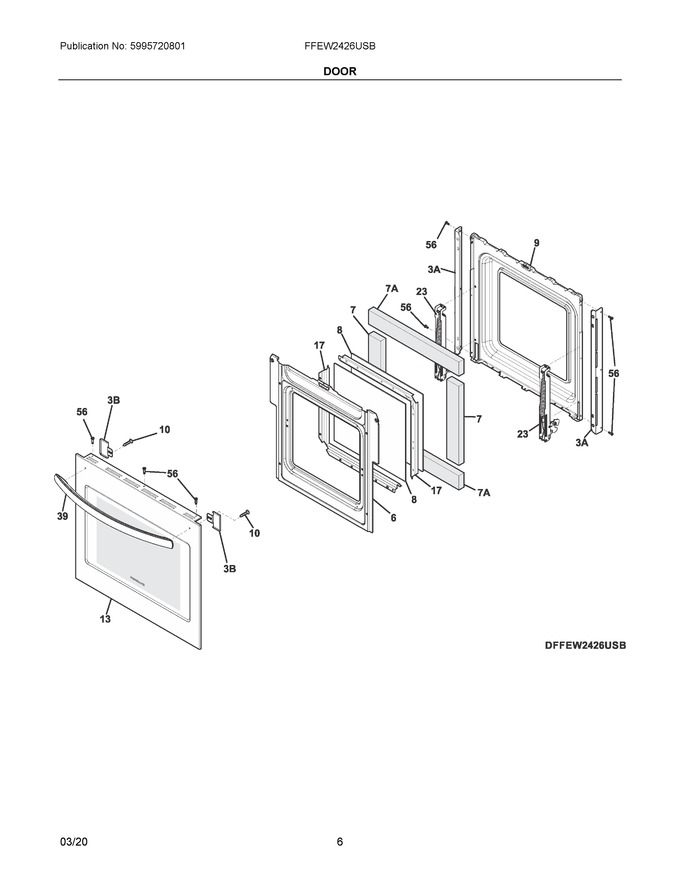

04 - Door


05 - Wiring Diagram


06 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139083101		Shield, Oven Door, Wool		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085801		Glass, Door, Inner, Hrc2		Appelez-nous	-
9	139014511		Liner, Door		Appelez-nous	-
10	5304414648		Screw, Handle Mtg.				$ 14.18
13	5304523849		Door Assembly, Steel/glass, Stainless/black, Outer		Appelez-nous	-
17	139085701		Spacer, Door Glass, (2)		Appelez-nous	-
23	316575954		Hinge, Oven Door, Blue		Appelez-nous	-
39	5304513073		Handle, Door/drawer, Stainless		Appelez-nous	-
64	318165800		Spacer, Glass, Foam				$ 17.72
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
3B	807192602		Cover, Door, Rear, (2)		Appelez-nous	-
7A	807193501		Insulation, Door, Top/bottom		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
