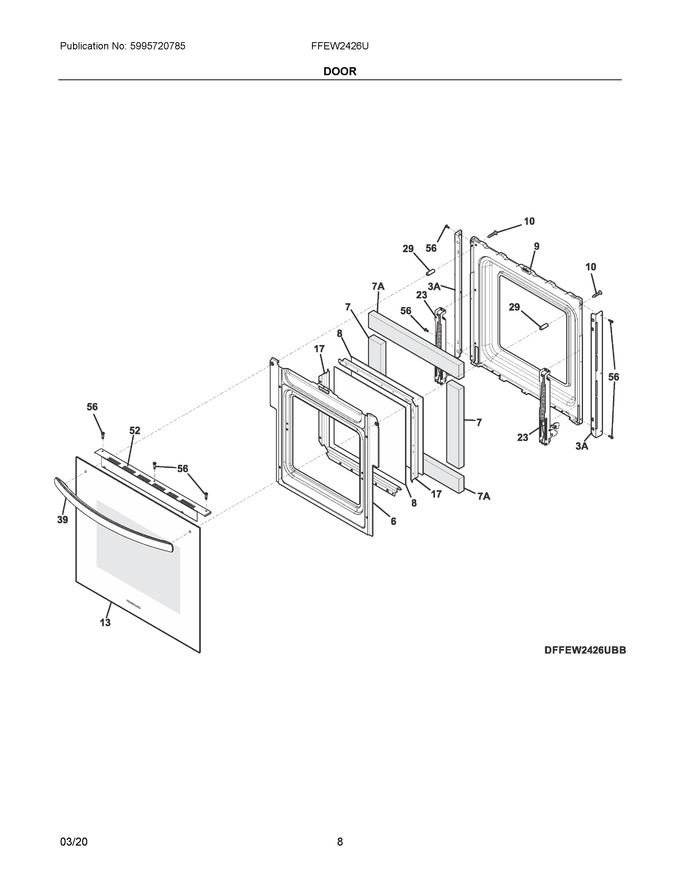

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	139083101		Shield, Oven Door, Wool		Appelez-nous	-
7	318372017		Insulation, Door				$ 16.30
8	139085801		Glass, Door, Inner, Hrc2		Appelez-nous	-
9	139014510		Liner, Door		Appelez-nous	-
10	316433304		Screw, 10-14 X 1.920", Handle Mtg.				$ 14.02
13	5304523847		Door Assembly, Outer, Steel/glass, White		Appelez-nous	-
17	139085701		Spacer, Door Glass, (2)		Appelez-nous	-
23	316575954		Hinge, Oven Door, Blue		Appelez-nous	-
29	139023400		Spacer, Door Handle, (2)				$ 20.48
39	5304513070		Handle, Door, White		Appelez-nous	-
52	139023801		Trim, Door, Black, Upper		Appelez-nous	-
56	5303324184		Screw, Truss Head, #8-32 X 3/8   (Replaces: 809136201)			Immediately	$ 14.18
3A	139014401		Trim, Oven Door, Black, Side, (2), Vented				$ 32.62
7A	807193501		Insulation, Door, Top/bottom		Appelez-nous	-
NIA	316418900		Screw, Sims Lp, #8-32 X 5/16", Black				$ 14.18
