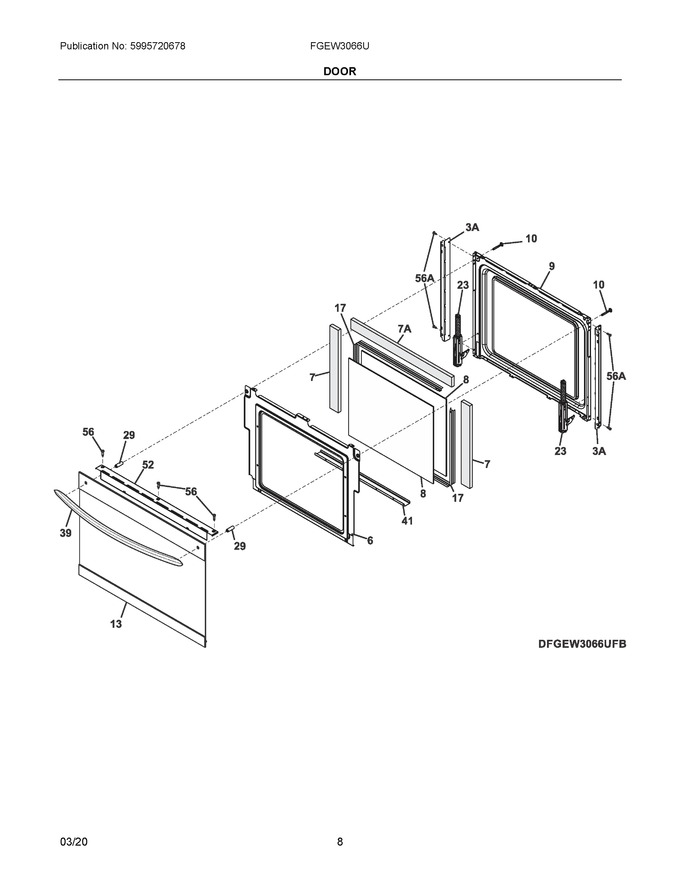

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 6 | 808474502 | Shield, Wool, Oven Door |
|
$ 108.45 | |||||
| 7 | 807887502 | Insulation, Door, Side, (2) |
|
$ 15.17 | |||||
| 8 | 316502500 | Glass, Door, Inner, (2) (Replaces: 316502504) |
|
Immediately | $ 115.65 | ||||
| 9 | 808474614 | Liner, Oven Door, Black |
|
$ 147.42 | |||||
| 10 | 5304507924 | Screw, Handle Mtg, 10-24 X 2.188, (2) (Replaces: 316513301) |
|
Immediately | $ 16.48 | ||||
| 13 | 5304514954 | Door Assembly, Outer, Stainless, W/trim |
|
$ 372.69 | |||||
| 17 | 5304503172 | Spacer, Door Glass, (2) (Replaces: 316502101) |
|
$ 25.79 | |||||
| 23 | 139010300 | Hinge, Door, Turquoise, Dual Spring (Replaces: 139010308) |
|
$ 164.86 | |||||
| 29 | 808296701 | Spacer, Door Handle, (2) |
|
$ 15.92 | |||||
| 39 | 316554010 | Handle, Door/drawer, Stainless (Replaces: 316554008) |
|
Immediately | $ 168.44 | ||||
| 41 | 5304500644 | Support, Glass |
|
$ 19.35 | |||||
| 52 | 5304520856 | Trim, Door, Black, Top |
|
$ 79.62 | |||||
| 56 | 5303324184 | Screw, Truss Head, #8-32 X 3/8 (Replaces: 809136201) |
|
Immediately | $ 14.18 | ||||
| 3A | 5304520787 | Trim, Oven Door, Black, Side Vent |
|
$ 61.66 | |||||
| 56A | 5303324184 | Screw, 8-18 X 5/16, Black |
|
Immediately | $ 14.18 | ||||
| 7A | 5304505925 | Insulation, Door, Upper |
|
$ 15.17 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
