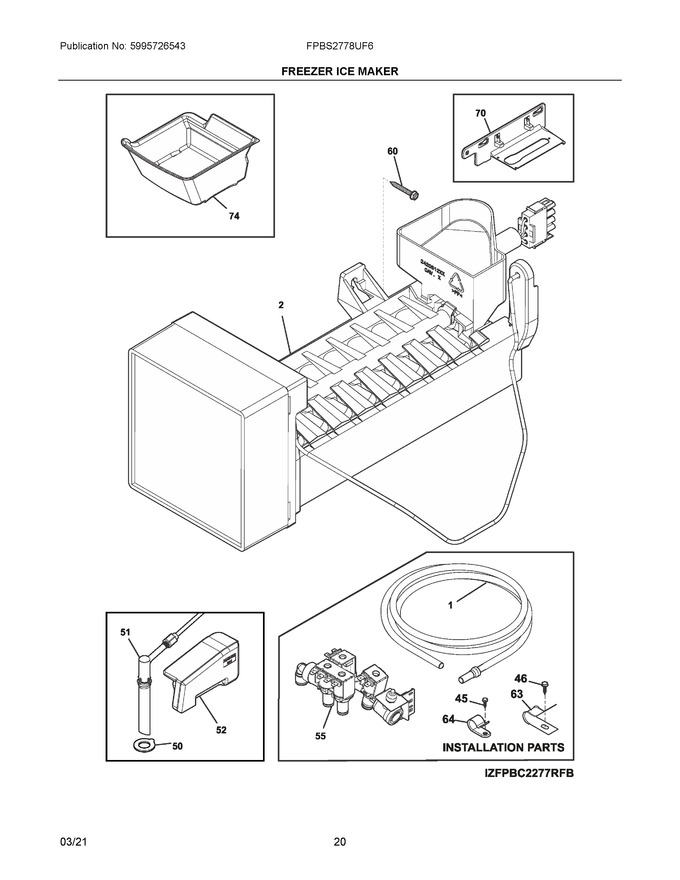

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976436 | Tube-water, 5/16-42", Yellow, Valve To, Back Connector (Replaces: 218976434) |
|
Immediately | $ 8.51 | ||||
| 2 | 241798233 | Ice Maker, Radius Cube |
|
Immediately | $ 258.66 | ||||
| 45 | 5304455650 | Screw, Hex Washer Head, 8-15a X 0.625, Low Profile |
|
$ 14.18 | |||||
| 46 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 50 | 241512813 | Seal, Doughnut |
|
Immediately | $ 6.82 | ||||
| 51 | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| 52 | 5304508046 | Insulation, I/m Fill Tube |
|
Immediately | $ 14.41 | ||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 60 | 5304455852 | Screw, Hex Washer Head, 8-15a X 1.000, (2) (Replaces: 5303207328) |
|
$ 12.76 | |||||
| 63 | 5304453921 | Clamp-cable |
|
- | |||||
| 64 | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| 70 | 242041701 | Bracket-ice Maker |
|
$ 70.88 | |||||
| 74 | 5304504277 | Container-ice |
|
$ 128.29 | |||||
| NI | 241806601 | Connector-water, Straight, 5/16 To 5/16 (Replaces: 242103001) |
|
Immediately | $ 70.56 | ||||
| NIA | 240555002 | Screw, Hex Washer Head, 8-32t X 0.375 (Replaces: 241690701) |
|
Immediately | $ 13.46 | ||||
| NIA | 241964707 | Tube-water, 1/4-36", Light Green, Valve To, Back Connector |
|
Immediately | $ 18.43 | ||||
| NIA | 240363602 | Screw-shoulder |
|
$ 13.65 | |||||
| NIB | 241965906 | Tube-water, 5/16-67", Natural, Dispenser To, Back Connector |
|
Immediately | $ 24.10 | ||||
| NIC | 242200102 | Clip, Tubing, 90 Deg Elbow |
|
$ 10.63 |
