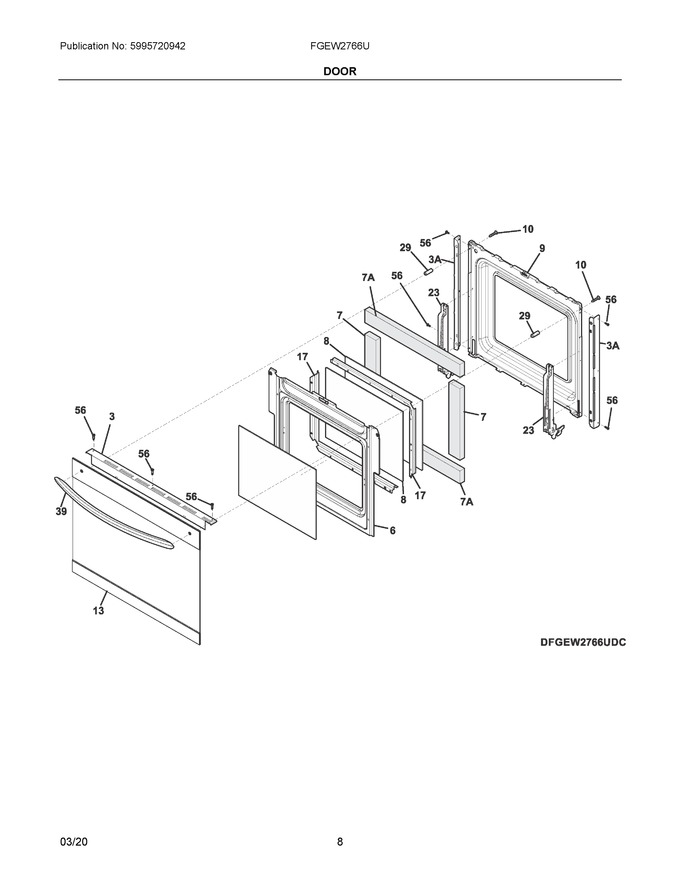

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cover Sheet
02 - Control Panel
03 - Body
04 - Door
05 - Wiring Diagram
06 - Wiring Diagram
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | 139023605 | Trim, Oven Door, Black, Upper |
|
$ 54.60 | |||||
| 6 | 139014203 | Baffle, Door |
|
- | |||||
| 7 | 318372017 | Insulation, Door |
|
$ 16.30 | |||||
| 8 | 139085802 | Glass, Door, Inner, (2), Shr |
|
- | |||||
| 9 | 139002905 | Liner, Oven Door |
|
Immediately | $ 110.73 | ||||
| 10 | 5304507924 | Screw, Loctite, #10-24x1.94, (2) |
|
Immediately | $ 16.48 | ||||
| 13 | 5304514944 | Door Assembly, Outer, Stainless, W/trim |
|
$ 352.22 | |||||
| 17 | 318264729 | Spacer, Glass, (2) |
|
- | |||||
| 23 | 316575952 | Hinge, Oven Door, Grey |
|
$ 66.74 | |||||
| 29 | 139023400 | Spacer, Door Handle, (2) |
|
$ 20.48 | |||||
| 39 | 318919602 | Handle, Door, Stainless |
|
$ 265.08 | |||||
| 56 | 5303324184 | Screw, Truss Head, #8-32 X 3/8 (Replaces: 809136201) |
|
Immediately | $ 14.18 | ||||
| 17A | 318264735 | Spacer, Glass, (2) |
|
$ 64.49 | |||||
| 3A | 139014401 | Trim, Oven Door, Black, Side, (2), Vented |
|
$ 32.62 | |||||
| 7A | 318372018 | Insulation, 20.5 X 2.375, 1" Thick, (2) |
|
$ 14.18 | |||||
| NI | 316021109 | Screw, 8-18 X 0.5, Black (Replaces: 316021110) |
|
Immediately | $ 27.50 | ||||
| NI | 5304535377 | Tape, Aluminum, 3" Wide (Replaces: 5303323168) |
|
$ 31.36 | |||||
| NIA | 316418900 | Screw, Sims Lp, #8-32 X 5/16", Black |
|
$ 14.18 |
