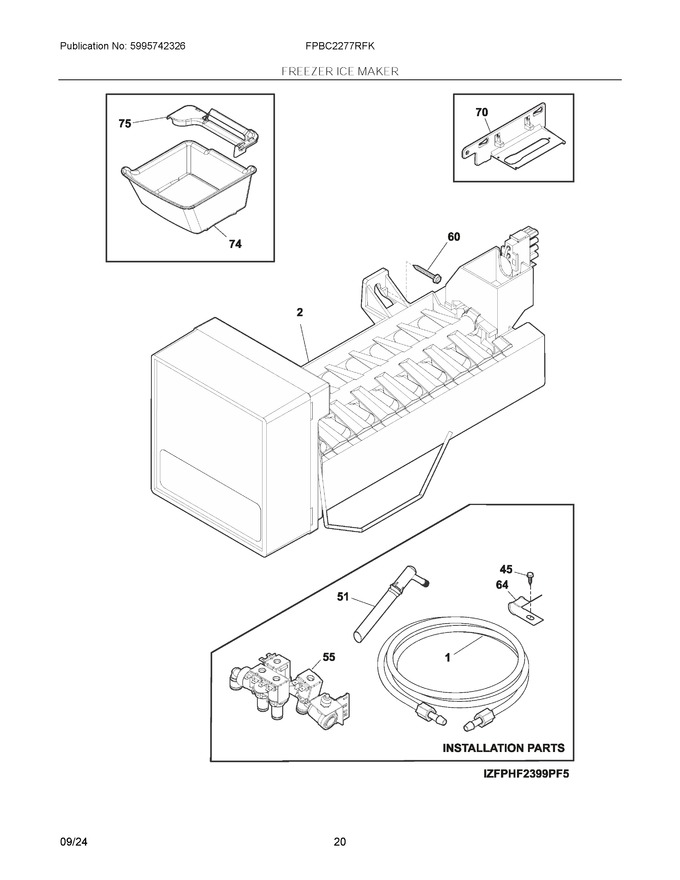

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 218976435 | Tube-water, 5/16-37", Yellow, Valve To, Back Connector |
|
$ 20.56 | |||||
| 2 | 241798233 | Ice Maker, Radius Cube, 115 V, Service (Replaces: 241798226) |
|
Immediately | $ 258.66 | ||||
| 45 | 5304453923 | Screw, Hex Hd Wshr, #8-32 X 1/2 |
|
- | |||||
| 51 | 242169404 | Tube-water, Ice Mold Fill, 1/4 - 44", Blue, W/extension |
|
- | |||||
| 55 | 242253002 | Valve-water, Quad Solenoid |
|
Immediately | $ 244.75 | ||||
| 64 | 5304453921 | Clamp-cable |
|
- | |||||
| 70 | 242053001 | Bracket-ice Maker |
|
$ 51.03 | |||||
| 74 | 242127901 | Container-ice |
|
$ 197.17 | |||||
| NI | 240396801 | Clamp, Tube/wiring, Nylon, Black/natural |
|
$ 19.13 | |||||
| NIA | 218709101 | Screw, Hex Head, 10-32 X 0.500 |
|
$ 6.38 | |||||
| NIA | 5303918571 | Tube-water, Ice Mold Fill, Black, Extension (Replaces: 241844403) |
|
$ 164.24 | |||||
| NIB | 240363602 | Screw-shoulder |
|
$ 13.65 |
