SELECT A DIAGRAM
02 - Cabinet And Component Parts

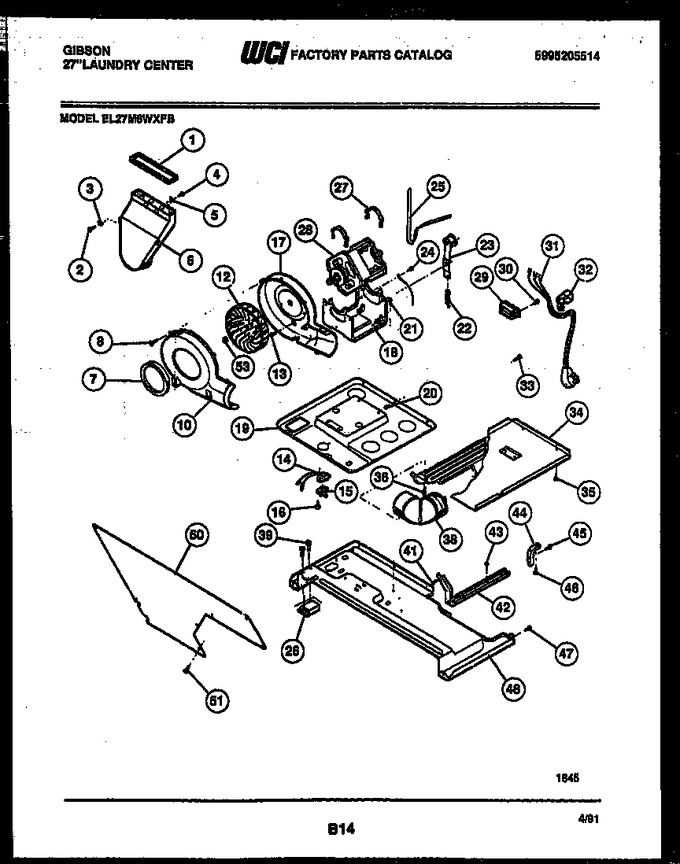

03 - Blower, Idler Arm Clutch And Motor
04 - Console And Control Parts
05 - Cabinet Parts
06 - Tub Detail
07 - Transmission Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3204298 | Seal-air Duct To Front Panel |
|
$ 46.99 | |||||
| 2 | 3281066 | Screw (2) |
|
- | |||||
| 3 | 5308014350 | Clip (2) |
|
- | |||||
| 4 | 3281066 | Screw (2) |
|
- | |||||
| 5 | 5308014350 | Clip (2) |
|
- | |||||
| 6 | 5303208615 | Air-duct |
|
- | |||||
| 7 | 3204490 | Seal-hsg. To Air Duct |
|
$ 14.18 | |||||
| 8 | 3205245 | Screw (6) |
|
- | |||||
| 10 | 5303271178 | Front-blower Housing |
|
- | |||||
| 12 | 131476300 | Blower Wheel (Replaces: 5303212513) |
|
Immediately | $ 47.00 | ||||
| 13 | 08011280 | Screw |
|
- | |||||
| 14 | 5303206879 | External Thermostat Heater |
|
- | |||||
| 15 | 3204307 | Control Thermostat |
|
$ 136.79 | |||||
| 16 | 3204308 | Screw (2) |
|
- | |||||
| 17 | 5303271179 | Rear-blower Housing |
|
- | |||||
| 18 | 3201239 | Motor-cradle |
|
- | |||||
| 19 | 3204311 | Upper Motor Cradle Pan |
|
- | |||||
| 20 | 3204253 | Screw-pan To Rear Panel (3) |
|
- | |||||
| 21 | 3281077 | Screw-cradle To Pan |
|
- | |||||
| 22 | 3205241 | Idler Spring |
|
$ 75.83 | |||||
| 23 | 3205242 | Idler Arm Asmy. |
|
$ 205.60 | |||||
| 24 | 5303161233 | Ground Screw |
|
- | |||||
| 25 | 3204314 | Belt |
|
- | |||||
| 26 | 5303212870 | Block (2) |
|
- | |||||
| 27 | 5303212834 | Clamp-motor (2) |
|
$ 3.78 | |||||
| 28 | 5303209662 | Dryer Motor |
|
$ 522.45 | |||||
| 29 | 134101400 | Terminal Block (Replaces: 5303208585) |
|
Immediately | $ 55.99 | ||||
| 30 | 5308015309 | Screw (2) |
|
- | |||||
| 31 | 5303212832 | Power Cord |
|
- | |||||
| 32 | 3204317 | Strain Relief |
|
- | |||||
| 33 | 3161275 | Ground Screw-rear Panel |
|
- | |||||
| 34 | 3204319 | Access Shield |
|
- | |||||
| 35 | 5303207399 | Screw (6) |
|
- | |||||
| 36 | 5303161233 | Screw |
|
- | |||||
| 38 | 3204320 | Elbow |
|
- | |||||
| 39 | 5308006553 | Screw (4) |
|
- | |||||
| 41 | 5303207399 | Screw-brkt To Side Panels (4) |
|
- | |||||
| 42 | 3204324 | Interior Marriage Brackets (2) |
|
- | |||||
| 43 | 3204325 | Screw-bracket To Bracket (4) |
|
- | |||||
| 44 | 3204326 | External Bracket (2) |
|
$ 43.24 | |||||
| 45 | 08011280 | Screw |
|
- | |||||
| 46 | 3204325 | Screw (2) |
|
- | |||||
| 47 | 5303207399 | Screw (6) |
|
- | |||||
| 48 | 5303212871 | Bottom Pan |
|
- | |||||
| 50 | 3204329 | Safety Cover |
|
$ 40.16 | |||||
| 51 | 5303207399 | Screw (6) |
|
- | |||||
| 53 | 5304488479 | Clamp (Replaces: 3204303) |
|
Immediately | $ 32.09 | ||||
| *36062 | 5303209915 | Bushing-pan Upper |
|
- | |||||
| 20A | 5303207399 | Screw-pan To Shield & Side Panel (4) |
|
- |
