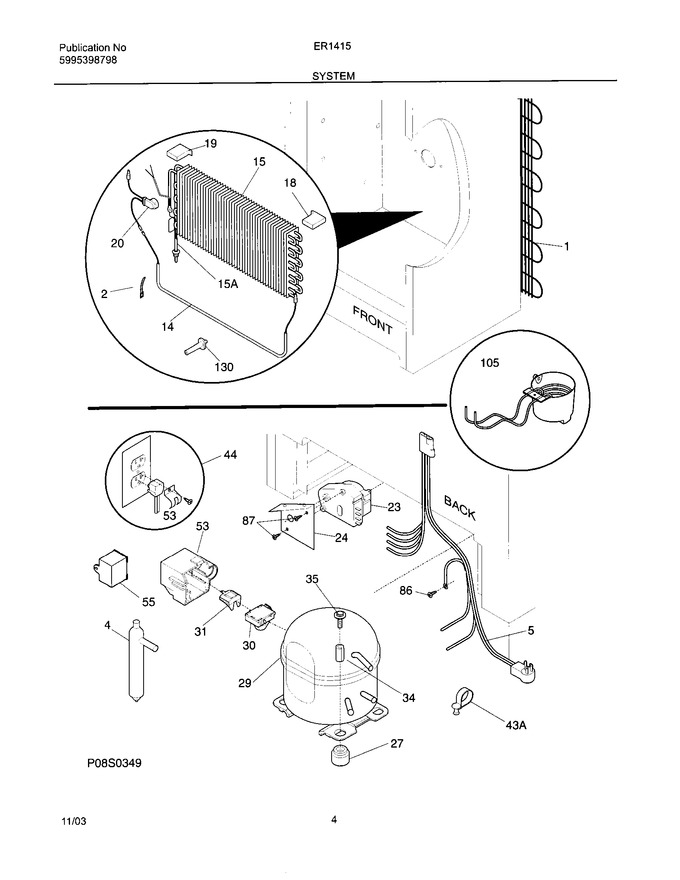

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5300123788		Condenser				$ 635.80
2	5308000110		Strap-evap/heater, Aluminum			Immediately	$ 59.82
4	5303305677		Drier-filter   (Replaces: 216634500)			Immediately	$ 31.67
5	216929700		Harness-main		Appelez-nous	-
14	5304496687		Heater-defrost   (Replaces: 216740000)				$ 97.81
15	297414800		Evaporator   (Replaces: 216737400)				$ 145.30
18	216727600		Insulator-evap,styrofoam		Appelez-nous	-
19	216727700		Insulator-evap,styrofoam		Appelez-nous	-
20	297216600		Thermostat-defrost   (Replaces: 216731000)			Immediately	$ 27.52
23	5304518034		Timer-defrost   (Replaces: 216744500)			Immediately	$ 57.55
24	08016580		Bracket		Appelez-nous	-
27	218513300		Grommet-compr Mtg				$ 42.53
29	216894100		Compressor,w/o Electricals				$ 697.20
30	216894200		Starter,relay			Immediately	$ 35.44
31	216100126		Overload Protector				$ 85.30
34	5306594529		Sleeve-compressor				$ 10.34
35	240491501		Screw-compressor Mtg,1/4-28 X 1.16 ,shoulder,typ Cf		Appelez-nous	-
44	08016777		Clamp, Pwr Cord Assy		Appelez-nous	-
53	216894500		Cover-terminal		Appelez-nous	-
55	297286810		Capacitor-run   (Replaces: 216894400)				$ 35.44
86	216036600		Screw,ph Washer Head ,8-32ca X 0.500 ,thread Forming		Appelez-nous	-
87	08037849		Screw,ph Truss Head ,6-32(t) X 0.500 ,thread Cutting				$ 8.98
105	216854001		Cup-drain		Appelez-nous	-
130	216486800		Support,evaporator Mtg		Appelez-nous	-
	216502500		Sleeve,suction Line				$ 10.85
15A	216751000		Heat Exchanger		Appelez-nous	-
43A	216629700		Clip		Appelez-nous	-
