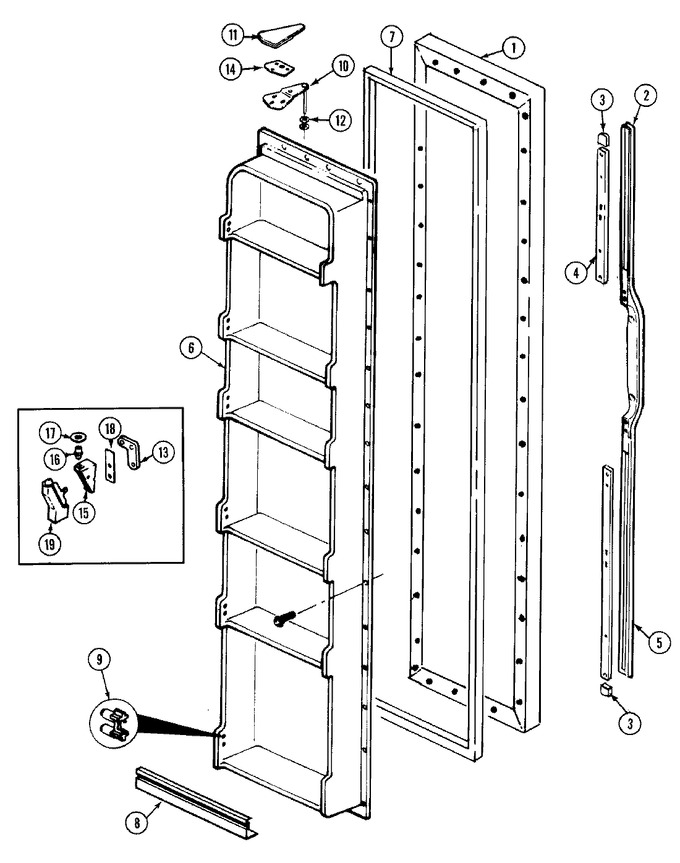

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72341-100-AM | Panel, Frz. Door (alm) | 10 |
|
- | ||||
| 2 | 12000043 | Kit, Handle Assy (almond) |
|
- | |||||
| 3 | 69590-1 | End Cap, Handle | 10 |
|
- | ||||
| 4 | 69586-1 | Trim, Handle | 10 |
|
- | ||||
| 5 | 69586-2 | Trim, Handle | 10 |
|
- | ||||
| 6 | 69246-1 | Liner, Frz. Door | 10 |
|
- | ||||
| 6 | 65275-5 | Screw | 10 |
|
- | ||||
| 7 | 70024-1 | Gasket | 10 |
|
- | ||||
| 8 | WP61003045 | Trim (Replaces: 68832-13) | 10 |
|
$ 129.55 | ||||
| 9 | WP65245-1 | Retainer, Shelf Trim (Replaces: 65245-1) | 10 |
|
$ 9.39 | ||||
| 10 | 53709-22 | Hinge, Upper | 10 |
|
- | ||||
| 10 | WP3-24838-048 | Screw (Replaces: 65275-52) | 10 |
|
$ 7.00 | ||||
| 11 | 70121-3 | Cover, Upper Hinge (alm) | 10 |
|
- | ||||
| 12 | WP52185-1 | Washer (Replaces: 52185-1) | 10 |
|
Immediately | $ 9.47 | |||
| 13 | 65275-59 | Screw | 10 |
|
- | ||||
| 13 | 67874-1 | Tapping Plate, Lower Hinge | 10 |
|
- | ||||
| 14 | 65031-1 | Shim, Upper Hinge | 10 |
|
- | ||||
| 15 | 69516-4 | Hinge, Lower (zinc) | 10 |
|
- | ||||
| 15 | 65275-51 | Screw, Lower Hinge | 10 |
|
- | ||||
| 16 | 68815-2 | Pin, Hinge | 10 |
|
- | ||||
| 17 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 10 |
|
Immediately | $ 45.86 | |||
| 19 | 495034-900 | Plug Button, Door | 10 |
|
- | ||||
| 19 | 68978-1 | Cover, Lower Hinge (blk) | 10 |
|
- | ||||
| 19 | 69258-1 | Closer, Door | 10 |
|
- | ||||
| 19 | 69263-1 | Insulation, Door Closer | 10 |
|
- |
