SELECT A DIAGRAM

01 - Freezer Compartment

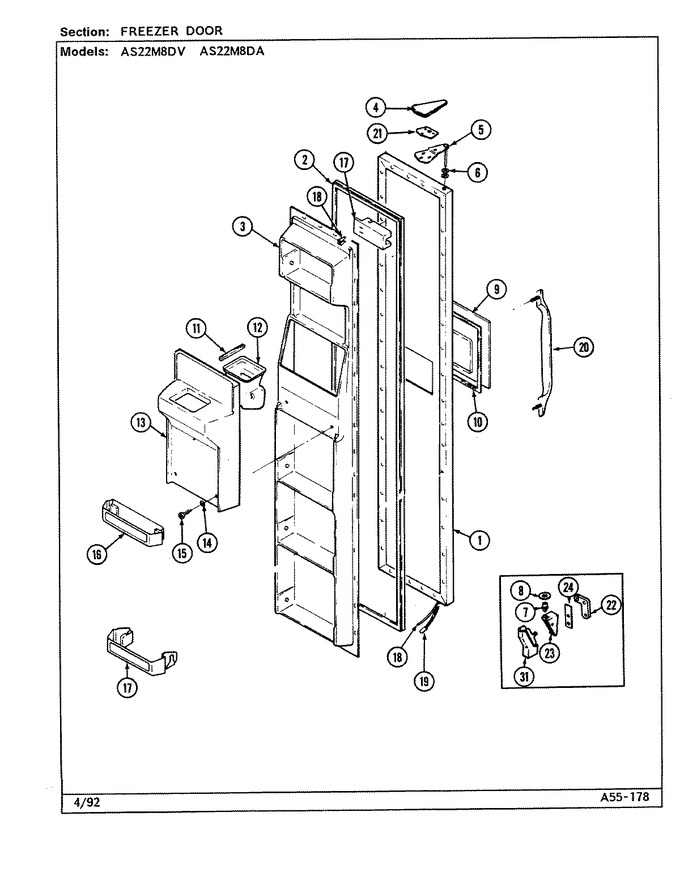

02 - Freezer Door


03 - Fresh Food Compartment


04 - Fresh Food Door


05 - Ice & Water Dispenser


06 - Ice Maker & Bin


07 - Shelves & Accessories


08 - Unit Compartment & System


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72346-5-AM		Panel, Frz. Door (alm)		Appelez-nous	-
2	70024-1		Gasket		Appelez-nous	-
3	69253-1		Liner, Frz. Door		Appelez-nous	-
3	65275-5		Screw		Appelez-nous	-
4	65003-3		Cover, Upper Hinge (alm)		Appelez-nous	-
5	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
5	53709-16		Upper Hinge,(chrome)		Appelez-nous	-
6	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
7	69844-1		Pin, Hinge Refrig.		Appelez-nous	-
8	67483-3		Washer, Door Spacer			Immediately	$ 45.86
9	68594-6		Escutcheon (alm)		Appelez-nous	-
10	95121-1		Tape, Escutcheon		Appelez-nous	-
11	52077-26		Seal		Appelez-nous	-
12	69220-1		Chute, Ice		Appelez-nous	-
13	68772-1		Insulation		Appelez-nous	-
13	68768-1		Insulation		Appelez-nous	-
13	69223-1		Panel, Access		Appelez-nous	-
14	68786-2		Stud		Appelez-nous	-
15	W11772394		Screw   (Replaces: 400021-103)			Immediately	$ 10.94
16	69873-7		Shelf, Pick-off		Appelez-nous	-
17	69870-7		Front, Pick-off		Appelez-nous	-
18	WPW10426709		Tubing, Coil To Fountain   (Replaces: 67187-29)				$ 126.83
19	69865-5		Wire Harness, Door		Appelez-nous	-
20	12000052		Kit, Handle Assy. (alm)		Appelez-nous	-
21	65031-1		Shim, Upper Hinge		Appelez-nous	-
22	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
22	65275-59		Screw		Appelez-nous	-
23	65275-51		Screw, Lower Hinge		Appelez-nous	-
23	69516-1		Hinge, Lower (blk)		Appelez-nous	-
24	69510-1		Shim, Lower Hinge		Appelez-nous	-
NI	68978-1		Cover, Lower Hinge (blk)		Appelez-nous	-
NI	65275-47		Screw, Hinge Cover (black)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
