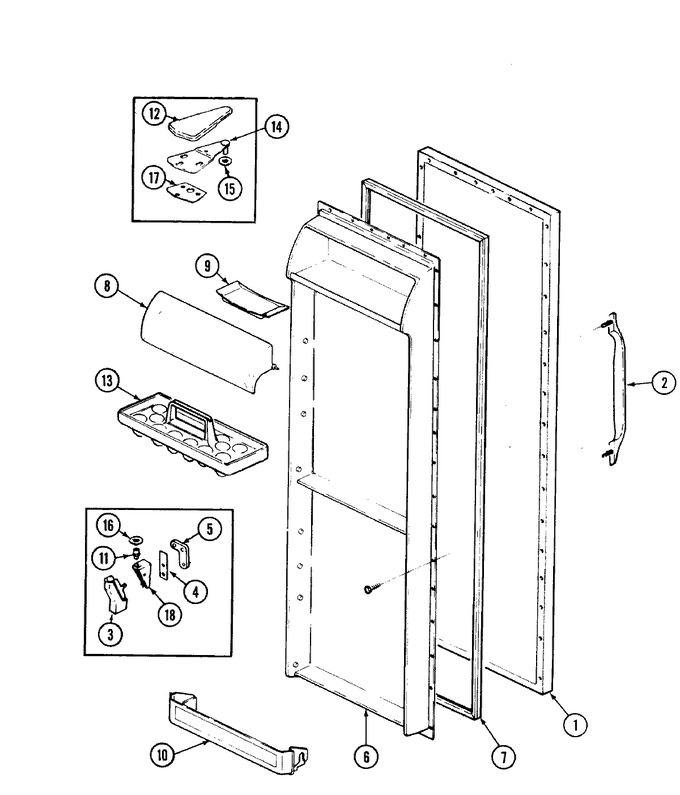

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 72348-3-AM | Panel, F.f. Door (alm) | 12 |
|
- | ||||
| 1 | W10856122 | Screw (Replaces: 65275-80) | 12 |
|
$ 6.98 | ||||
| 2 | 495034-900 | Plug Button, Door | 12 |
|
- | ||||
| 2 | 66982-29 | Nameplate (wht) | 12 |
|
- | ||||
| 2 | 12000052 | Kit, Handle Assy. (alm) | 12 |
|
- | ||||
| 3 | 68978-1 | Cover, Lower Hinge (blk) | 12 |
|
- | ||||
| 4 | 69510-1 | Shim, Lower Hinge | 12 |
|
- | ||||
| 5 | 67874-1 | Tapping Plate, Lower Hinge | 12 |
|
- | ||||
| 5 | 65275-59 | Screw | 12 |
|
- | ||||
| 6 | 65275-5 | Screw | 12 |
|
- | ||||
| 6 | 69242-1 | Liner, F.f. Door | 12 |
|
- | ||||
| 7 | 70024-4 | Gasket, F.f. Door (wht) | 12 |
|
$ 184.29 | ||||
| 8 | 69058-28 | Door, Dairy | 12 |
|
- | ||||
| 9 | 29936-2 | Tray, Butter | 12 |
|
- | ||||
| 10 | 69871-6 | Front, Pick-off | 12 |
|
- | ||||
| 11 | 69845-1 | Pin, Lower Hinge | 12 |
|
$ 44.55 | ||||
| 12 | 65003-1 | Cover, Upper Hinge | 12 |
|
- | ||||
| 13 | 60066-1 | Tray, Egg | 12 |
|
- | ||||
| 14 | 53709-22 | Hinge, Upper | 12 |
|
- | ||||
| 14 | WP3-24838-048 | Screw (Replaces: 65275-52) | 12 |
|
$ 7.00 | ||||
| 15 | WP52185-1 | Washer (Replaces: 52185-1) | 12 |
|
Immediately | $ 9.47 | |||
| 16 | 67483-3 | Washer, Lower Hinge (Replaces: 67483-2) | 12 |
|
Immediately | $ 45.86 | |||
| 17 | 65031-1 | Shim, Upper Hinge | 12 |
|
- | ||||
| 18 | 65275-47 | Screw, Hinge Cover (black) | 12 |
|
- | ||||
| 18 | 69516-2 | Hinge, Lower (blk) | 12 |
|
- |
