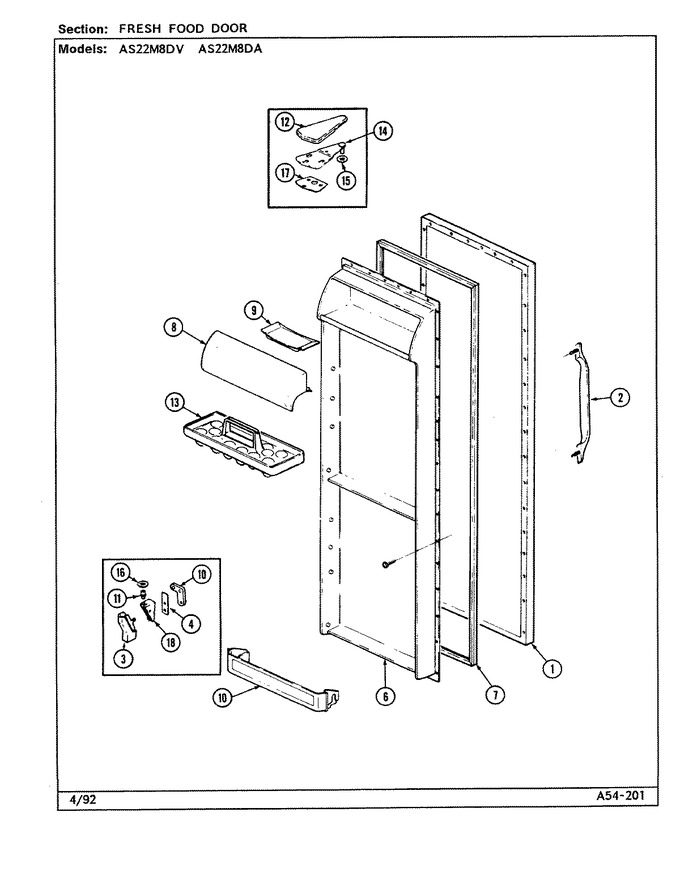

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	72348-3-WW		Panel, F.f. Door (wht)		Appelez-nous	-
1	W10856122		Screw   (Replaces: 65275-80)				$ 6.98
2	495034-900		Plug Button, Door		Appelez-nous	-
2	66982-29		Nameplate (wht)		Appelez-nous	-
2	12000051		Kit, Handle Assy. (wht)		Appelez-nous	-
3	68978-4		Cover, Lower Hinge (wht)		Appelez-nous	-
4	69510-1		Shim, Lower Hinge		Appelez-nous	-
5	67874-1		Tapping Plate, Lower Hinge		Appelez-nous	-
5	65275-59		Screw		Appelez-nous	-
6	65275-5		Screw		Appelez-nous	-
6	69242-1		Liner, F.f. Door		Appelez-nous	-
7	70024-4		Gasket, F.f. Door (wht)				$ 184.29
8	69058-28		Door, Dairy		Appelez-nous	-
9	29936-2		Tray, Butter		Appelez-nous	-
10	69871-6		Front, Pick-off		Appelez-nous	-
11	69845-1		Pin, Lower Hinge				$ 44.55
12	65003-6		Cover, Upper Hinge (wht)		Appelez-nous	-
13	60066-1		Tray, Egg		Appelez-nous	-
14	53709-22		Hinge, Upper		Appelez-nous	-
14	WP3-24838-048		Screw   (Replaces: 65275-52)				$ 7.00
15	WP52185-1		Washer   (Replaces: 52185-1)			Immediately	$ 9.47
16	67483-3		Washer, Lower Hinge   (Replaces: 67483-2)			Immediately	$ 45.86
17	65031-1		Shim, Upper Hinge		Appelez-nous	-
18	65275-51		Screw, Lower Hinge		Appelez-nous	-
18	69516-4		Hinge, Lower (zinc)		Appelez-nous	-
