SELECT A DIAGRAM

01 - Console


02 - Tub , Literature And Optional


03 - Door


04 - Heater, Pump And Lower Sprayarm


05 - Dishrack And Panel


06 - Pump And Motor


07 - Wiring Harness

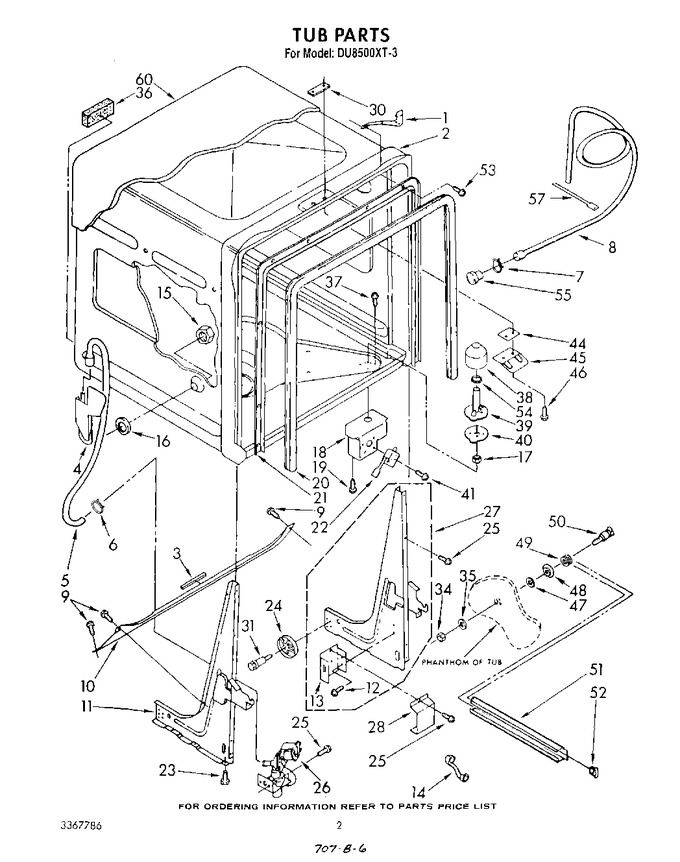

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	300796		Bracket, Mounting (2)		Appelez-nous	-
2	3367464		Tub Assembly		Appelez-nous	-
3	303294		Edge Protector		Appelez-nous	-
4	3367572		Inlet, Water		Appelez-nous	-
5	3368563		Hose, Inlet		Appelez-nous	-
6	WP596669		Clamp   (Replaces: 301958)			Immediately	$ 7.56
7	WP356138		Clamp, Hose   (Replaces: 356138)			Immediately	$ 7.67
8	675544		Hose, Drain   (Replaces: 304626)			Immediately	$ 133.29
9	WP302868		Screw, 8 X 3/8 (4)   (Replaces: 302868)			Immediately	$ 6.98
10	3368647		Brace		Appelez-nous	-
11	3367284		Leg & Hinge Assembly, L.h.		Appelez-nous	-
12	718178		Screw, 8-32 X 3/8		Appelez-nous	-
13	300067		Box, Terminal		Appelez-nous	-
14	717563		Relief, Strain		Appelez-nous	-
15	713799		Nut, 7/8-16		Appelez-nous	-
16	713878		Gasket		Appelez-nous	-
17	717488		Nut, 1/8				$ 12.83
18	719342		Bracket, Overflow		Appelez-nous	-
19	718250		Screw, 8 X 1/2 (3)		Appelez-nous	-
20	3368007		Gasket				$ 36.29
21	3368002		Retainer & Seal				$ 59.65
22	660741		Switch, Pressure		Appelez-nous	-
23	8193716		Leveling Leg   (Replaces: 302849)			Immediately	$ 76.25
24	302819		Wheel, Leg				$ 5.65
25	WP90767		Screw, 8 X 3/8   (Replaces: 90767)			Immediately	$ 7.04
26	660995		Valve, Water Inlet		Appelez-nous	-
27	3367498		Leg & Hinge Assembly, R.h.		Appelez-nous	-
28	300068		Cover, Terminal Box				$ 30.14
30	303080		Nut, Twin Spring		Appelez-nous	-
31	302818		Screw, Shoulder		Appelez-nous	-
34	718829		Locknut, 10-32 (8)		Appelez-nous	-
35	717624		Washer (8)		Appelez-nous	-
36	3368107		Block Foam, Tub (2)		Appelez-nous	-
37	WP488729		Screw, 8-18 X 1/2   (Replaces: 717236)			Immediately	$ 7.01
38	718035		Float		Appelez-nous	-
39	719967		Standpipe, Overflow		Appelez-nous	-
40	719966		Gasket, Overflow		Appelez-nous	-
41	302203		Screw, 4-40 X 5/8		Appelez-nous	-
44	712302		Shim		Appelez-nous	-
45	300233		Strike		Appelez-nous	-
46	WP308685		Screw, 10-16 X 1/2 (2)   (Replaces: 3367670)			Immediately	$ 7.08
47	718750		Washer (8)		Appelez-nous	-
48	718817		Washer, Cup (8)		Appelez-nous	-
49	300844		Wheel Assembly (8)		Appelez-nous	-
50	712499		Screw, Shoulder (8)		Appelez-nous	-
51	300846		Track (2)		Appelez-nous	-
52	300845		End Cap, Track (4)				$ 7.63
53	3368008		Screw, 8-18 X 5/8 (10)		Appelez-nous	-
54	301662		Gasket (2)		Appelez-nous	-
55	301656		Insert, Cup-hose		Appelez-nous	-
57	WPW10144763		Clip, Strap   (Replaces: 596490)				$ 6.80
60	285365		Toast		Appelez-nous	-
60	285366		Paint, Spray (13 Oz.) (platinum)		Appelez-nous	-
60	350942		Primer (white)   (Replaces: 206922)				$ 80.69
60	350941		Leveler (thinner)		Appelez-nous	-
60	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
60	978883		Almond (uncut)		Appelez-nous	-
60	261887		Coffee (uncut)		Appelez-nous	-
60	261889		New Avocado (uncut)		Appelez-nous	-
60	261891		Golden Harvest (uncut)		Appelez-nous	-
60	285367		Enamal, Toast (1 Qt. Uncut)		Appelez-nous	-
60	285368		Platinum (uncut)		Appelez-nous	-
60	799640		Kit, Epoxy Patch (white)		Appelez-nous	-
60	675476		Vinyl Touch Up (blue)		Appelez-nous	-
60	675506		Tine Tip Repair Kit (blue-enough For Two Complete Dishracks)		Appelez-nous	-
60	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.12
60	W11086533		Shield, Sound   (Replaces: 304786)			Immediately	$ 28.17
60	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
60	72112		Paint, (touch-up 1/2 Oz.) (toast)		Appelez-nous	-
60	DD81-03496A		Paint, Touch-up 1/2 Oz. (platinum)   (Replaces: 72113)				$ 105.40
60	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 34.39
60	261890		Golden Harvest		Appelez-nous	-
60	285006		Paint, Spray 13 Oz. (black)			Immediately	$ 51.34
60	350956		Paint, Spray 13 Oz. (almond)				$ 46.30
60	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
	LIT3367007		Instructions, Installation (supplement) (locating Your Water Supply)		Appelez-nous	-
	LIT3367786		List, Parts		Appelez-nous	-
	LIT304291		Guide, Use & Care		Appelez-nous	-
	LIT3368835		Label, Wiring Diagram		Appelez-nous	-
	LIT3369927		Energy Guide		Appelez-nous	-
	LIT3367228		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
